Landscape · L-R3TTR

Tree Planting Details in Decomposed Granite and Box Configurations

About this detail

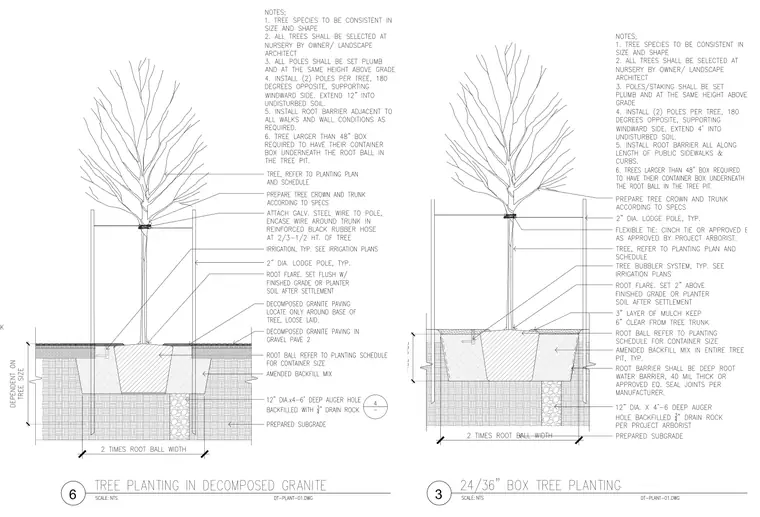

Tree planting details showing two typical installation configurations. The first assembly specifies planting in decomposed granite paving, featuring a tree set with root flare flush with finished grade or planter soil, amended backfill mix, and a root barrier adjacent to walks and wall conditions. Two two-inch diameter lodge poles are set plumb and opposite to support the tree, with galvanized steel wire attached to the pole and encased in reinforced black rubber hose at two-thirds to one-half the height of the tree. A 12-inch diameter by four-to-six-foot deep auger hole is backfilled with three-quarter-inch drain rock beneath the root ball. The second assembly details a 24/36-inch box tree planting with a tree root flare set two inches above finished grade, amended backfill mix in the entire tree pit, and a deep root water barrier that is 40 mil thick with sealed joints. Both configurations specify a root ball width of two times the root ball diameter, prepared subgrade, and specific notes regarding tree species consistency, nursery selection, and staking requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
