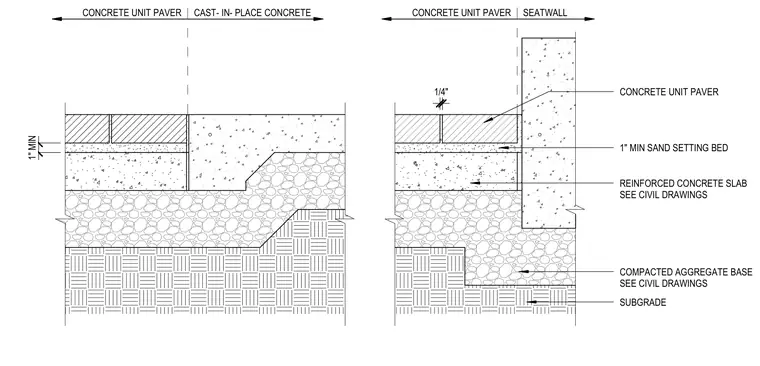

Concrete unit pavers are installed on a one-inch minimum sand setting bed over a reinforced concrete slab. The slab bears on a compacted aggregate base and subgrade, coordinated with civil drawings. At the perimeter, the pavers meet a cast-in-place concrete seatwall with a one-quarter inch joint.
CONCRETE UNIT PAVER CAST- IN- PLACE CONCRETE CONCRETE UNIT PAVER SEATWALL 1" MIN SAND SETTING BED 1" MIN REINFORCED CONCRETE SLAB SEE CIVIL DRAWINGS COMPACTED AGGREGATE BASE SEE CIVIL DRAWINGS CONCRETE UNIT PAVER 1/4" SUBGRADE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
