Landscape · L-QZPQ3

Kicker Detail

Scale: 3/4" = 1'-0"
Units: imperial
Sheet: LO-S6.0.2
Discipline: Landscape

Materials

Steel

Elements

Bracing Roofs

Connections

Bracing Connection Welded Connection

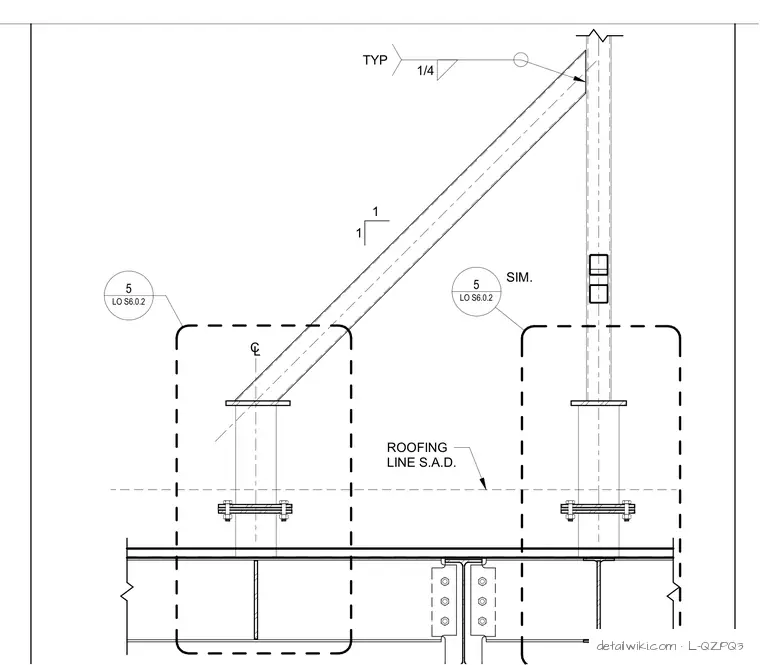

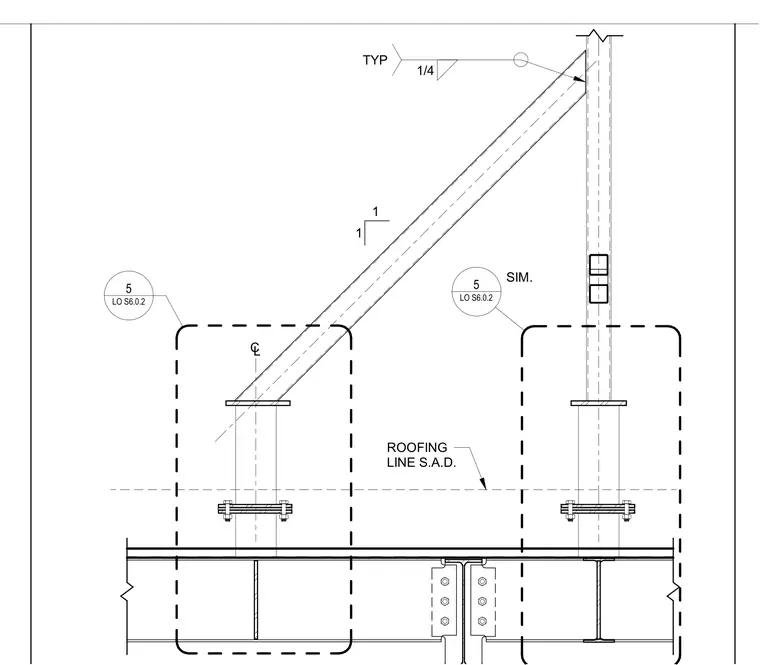

Text on the drawing

1/4 TYP 1 1 C L LO S6.0.2 5 ROOFING LINE S.A.D. LO S6.0.2 5 SIM.
