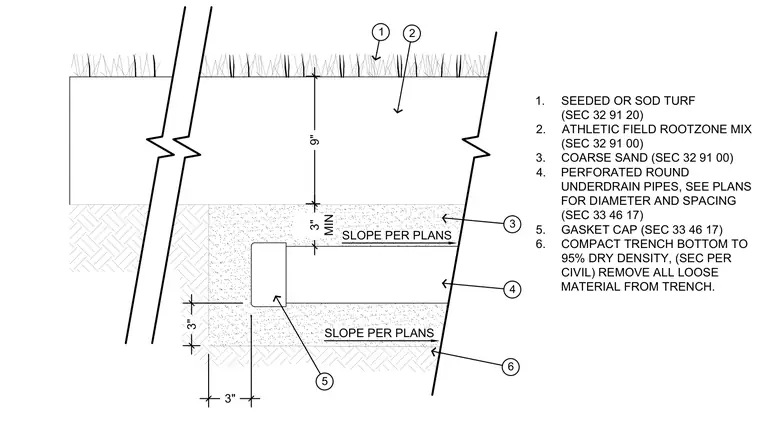

The assembly rests on a compacted trench bottom compacted to ninety-five percent dry density with all loose material removed. A perforated round underdrain pipe with a gasket cap is bedded in coarse sand with a minimum of three inches of clearance on the bottom and sides and a three-inch minimum layer above. The trench is filled with athletic field rootzone mix extending nine inches up to a top layer of seeded or sod turf. Both the pipe and surrounding layers slope per the civil plans.
3" 3" 4 6 5 9" 3" MIN 1. SEEDED OR SOD TURF (SEC 32 91 20) 2. ATHLETIC FIELD ROOTZONE MIX (SEC 32 91 00) 3. COARSE SAND (SEC 32 91 00) 4. PERFORATED ROUND UNDERDRAIN PIPES, SEE PLANS FOR DIAMETER AND SPACING (SEC 33 46 17) 5. GASKET CAP (SEC 33 46 17) 6. COMPACT TRENCH BOTTOM TO 95% DRY DENSITY, (SEC PER CIVIL) REMOVE ALL LOOSE MATERIAL FROM TRENCH. 1 2 3 SLOPE PER PLANS SLOPE PER PLANS
