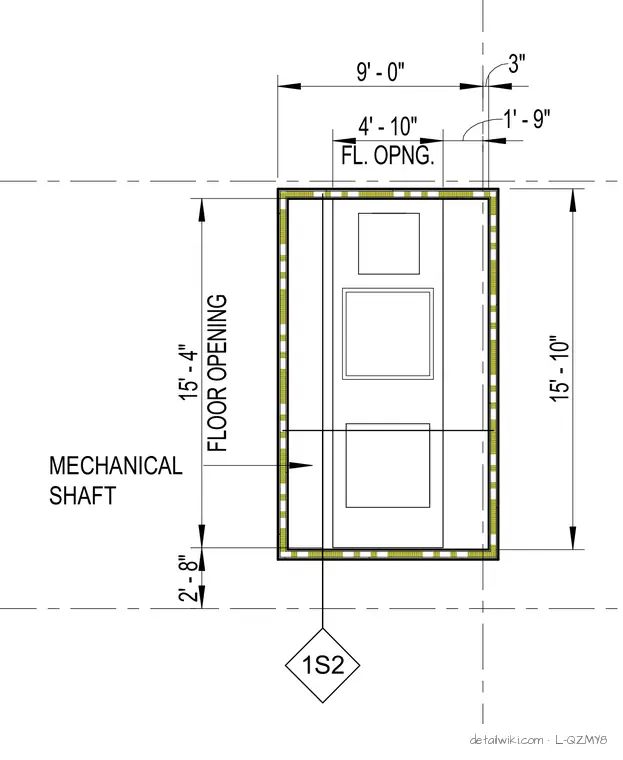

Text on the drawing
FL. OPNG. 4' - 10" 1' - 9" MECHANICAL SHAFT 1S2 9' - 0" 3" FLOOR OPENING 15' - 4" 2' - 8" 15' - 10"
