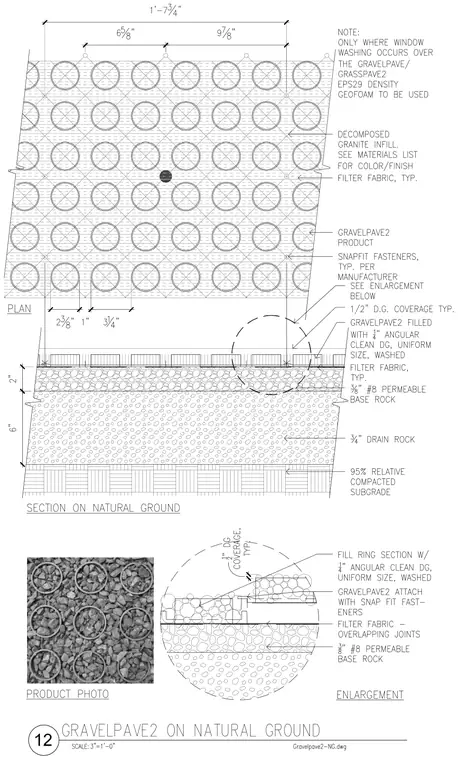

This assembly consists of a Gravelpave2 porous paving product filled with one-quarter-inch angular clean decomposed granite and covered by half-inch decomposed granite coverage. The paving rings connect using typical snap-fit fasteners per the manufacturer instructions and rest on a filter fabric layer. Below the filter fabric lies a three-eighths-inch number eight permeable base rock layer measuring two inches thick, sitting atop a six-inch layer of three-quarter-inch drain rock. The entire assembly bears on a ninety-five percent relative compacted subgrade. A note specifies that EPS twenty-nine density geofoam must be used only where window washing occurs over the gravelpave or grasspave system.
