A curved bench assembly features wood slats mounted on a metal support structure positioned over a concrete footing. A linear LED light fixture is installed at the underside, with pre-drilled wiring holes and electrical conduit routed to a remote NEMA enclosure. The bench abuts a planter containing soil and vegetation, secured with anchor bolts and mounting plates. Electrical connections extend to the circuit through designated conduits.

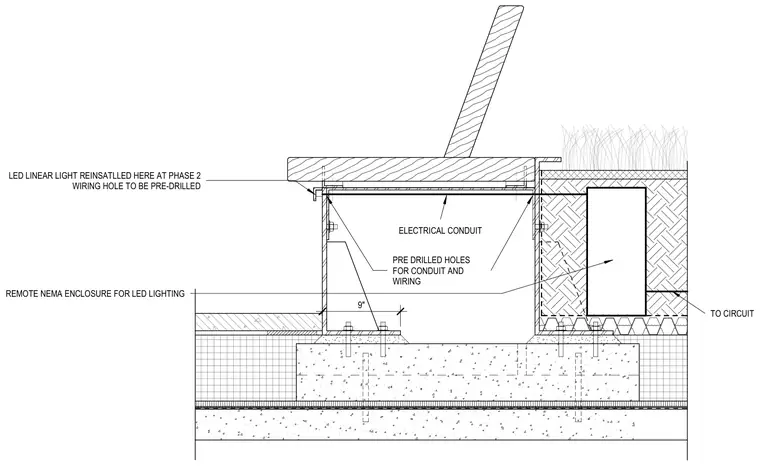

LED LINEAR LIGHT REINSATLLED HERE AT PHASE 2 WIRING HOLE TO BE PRE-DRILLED 9" PRE DRILLED HOLES FOR CONDUIT AND WIRING REMOTE NEMA ENCLOSURE FOR LED LIGHTING ELECTRICAL CONDUIT TO CIRCUIT
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
