Remote Control Valve Drip Installation

Materials

Elements

Waterproofing / Flashing Connections / Plates

About this detail

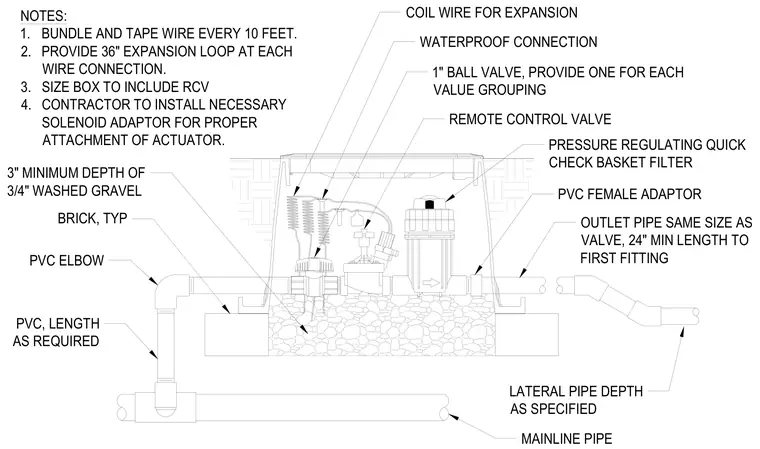

A remote control valve connects to a PVC mainline pipe via a PVC elbow and riser, resting on a bed of three-quarter inch washed gravel at a minimum depth of three inches with typical brick supports. The assembly includes a one-inch ball valve for each valve grouping, a remote control valve, a pressure-regulating quick-check basket filter, and PVC female adapters linking to the outlet pipe. The outlet pipe matches the valve size and maintains a minimum length of twenty-four inches to the first fitting before transitioning to lateral piping at the specified depth. Wiring features waterproof connections, coiled expansion wire, thirty-six inch expansion loops at each connection, and bundled wires taped every ten feet. The valve box is sized to accommodate the remote control valve, and a solenoid adaptor is installed for proper actuator attachment.
