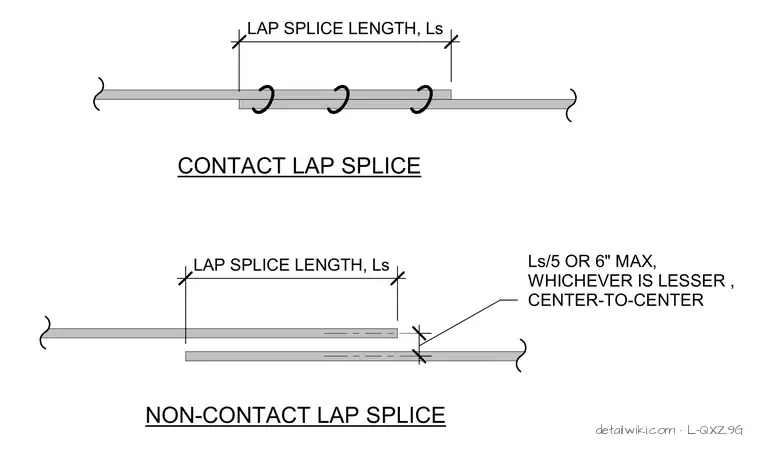

Contact and non-contact lap splice configurations for reinforcing steel in concrete structures. The contact lap splice features overlapping reinforcing bars tied together across the specified lap splice length Ls. The non-contact lap splice features parallel reinforcing bars offset from one another by a transverse distance limited to one-fifth of the lap splice length Ls or six inches maximum, whichever is lesser, measured center-to-center.
NON-CONTACT LAP SPLICE CONTACT LAP SPLICE LAP SPLICE LENGTH, Ls LAP SPLICE LENGTH, Ls Ls/5 OR 6" MAX, WHICHEVER IS LESSER , CENTER-TO-CENTER
