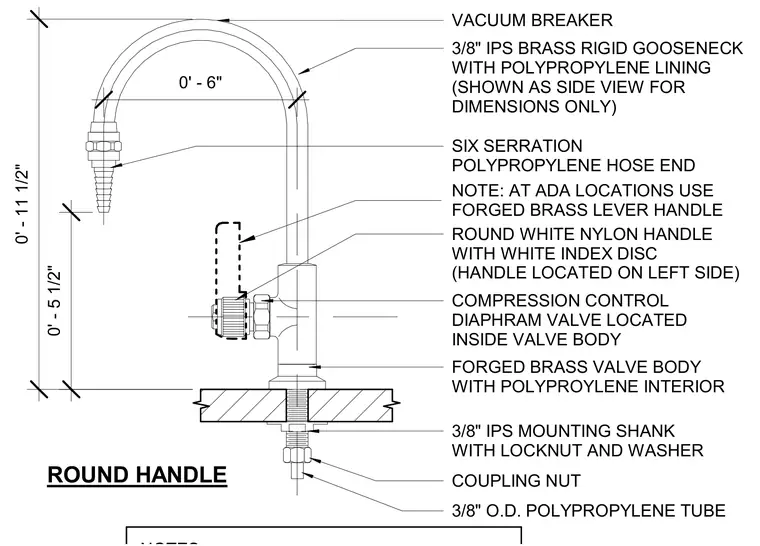

The assembly features a 3/8-inch IPS brass rigid gooseneck with a polypropylene lining and a vacuum breaker, terminating in a six-serration polypropylene hose end. A forged brass valve body with a polypropylene interior houses a compression control diaphragm valve, operated by a round white nylon handle with a white index disc located on the left side, with an optional forged brass lever handle specified for ADA locations. The fixture mounts through the deck using a 3/8-inch IPS mounting shank secured with a locknut and washer, connecting below to a coupling nut and a 3/8-inch outer diameter polypropylene tube.
ROUND WHITE NYLON HANDLE WITH WHITE INDEX DISC (HANDLE LOCATED ON LEFT SIDE) 0' - 6" 0' - 11 1/2" 0' - 5 1/2" ROUND HANDLE SIX SERRATION POLYPROPYLENE HOSE END 3/8" IPS BRASS RIGID GOOSENECK WITH POLYPROPYLENE LINING (SHOWN AS SIDE VIEW FOR DIMENSIONS ONLY) COMPRESSION CONTROL DIAPHRAM VALVE LOCATED INSIDE VALVE BODY FORGED BRASS VALVE BODY WITH POLYPROYLENE INTERIOR 3/8" IPS MOUNTING SHANK WITH LOCKNUT AND WASHER COUPLING NUT 3/8" O.D. POLYPROPYLENE TUBE NOTE: AT ADA LOCATIONS USE FORGED BRASS LEVER HANDLE VACUUM BREAKER
