Laboratory Fume Hood Section and Plumbing Assembly

Elements

Walls Floors / Slabs Connections / Plates

About this detail

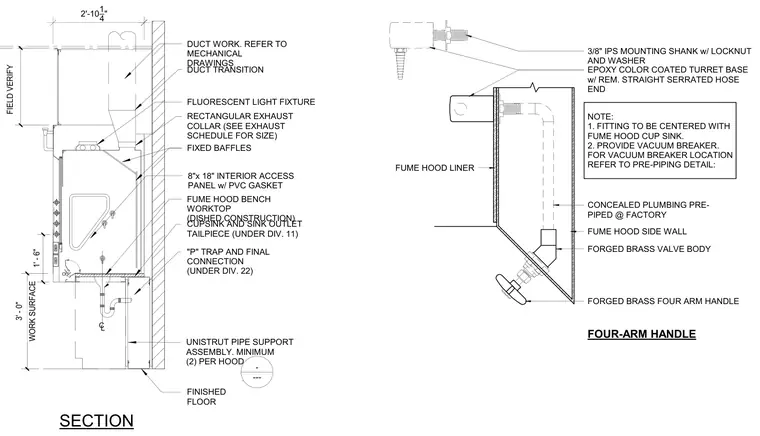

A full-height laboratory fume hood assembly sits on a finished floor at a work surface set three feet high, with an overall width of two feet ten and a quarter inches. The upper portion connects to a rectangular exhaust collar and duct transition that links to mechanical ductwork, housing a fluorescent light fixture and fixed baffles. The interior features a dished construction bench worktop with a cup sink and sink outlet tailpiece connecting to a P trap below, alongside an eight-by-eighteen-inch interior access panel with a PVC gasket. Concealed plumbing is pre-piped at the factory through the fume hood side wall, terminating at a forged brass valve body operated by a forged brass four-arm handle. A turret base with an epoxy color coating mounts via a three-eighths-inch IPS mounting shank with a locknut and washer, centered with the fume hood cup sink and provided with a vacuum breaker. Unistrut pipe support assemblies, with a minimum of two per hood, support the lower casework.
