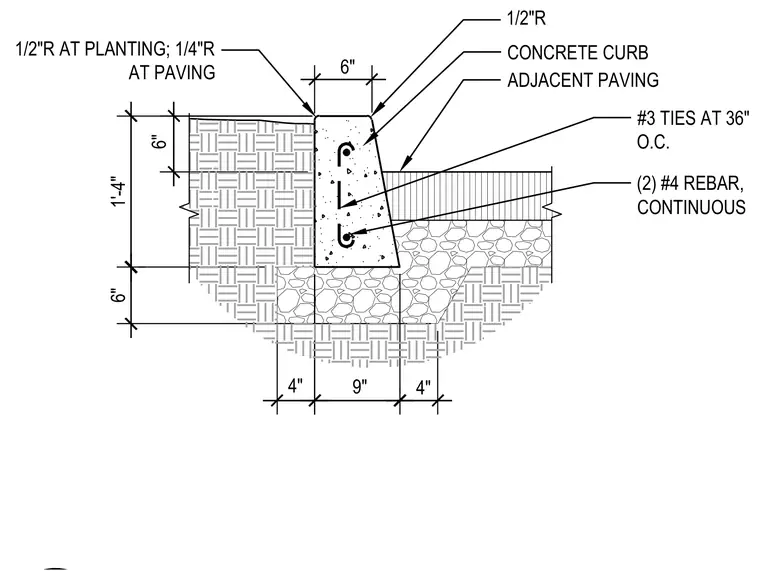

A concrete curb profile has a width of six inches at the top and a total height of one foot four inches. The curb is reinforced with two continuous number four rebars and number three ties spaced at thirty-six inches on center. The top edges feature a half-inch radius at planting areas and a quarter-inch radius at paving areas. The base of the curb rests on a prepared sub-base extending four inches beyond each side of the nine-inch wide bottom.
9" 4" 1'-4" 6" 6" 6" 4" ADJACENT PAVING CONCRETE CURB 1/2"R 1/2"R AT PLANTING; 1/4"R AT PAVING (2) #4 REBAR, CONTINUOUS #3 TIES AT 36" O.C.
