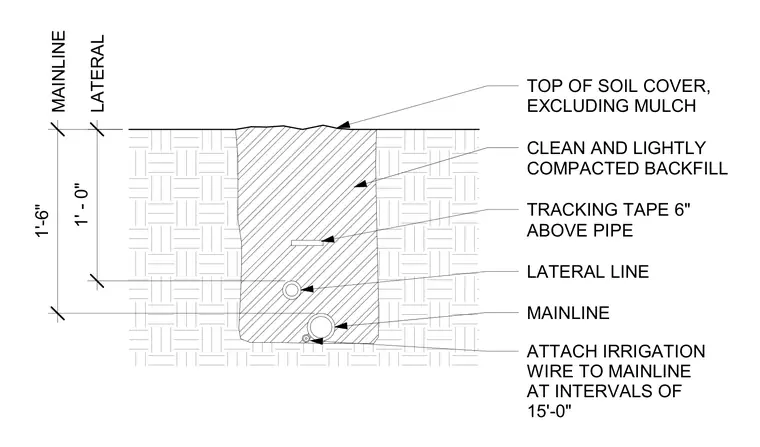

An irrigation trench contains a mainline positioned at the bottom with an irrigation wire attached at intervals of fifteen feet. A lateral line is positioned above the mainline at a depth of one foot, while the mainline sits at a depth of one foot six inches below the top of the soil cover. Tracking tape is installed six inches above the pipe within clean and lightly compacted backfill.
TOP OF SOIL COVER, CLEAN AND LIGHTLY COMPACTED BACKFILL TRACKING TAPE 6" ABOVE PIPE LATERAL LINE MAINLINE MAINLINE LATERAL ATTACH IRRIGATION WIRE TO MAINLINE AT INTERVALS OF 15'-0" EXCLUDING MULCH 1' - 0" 1'-6"
