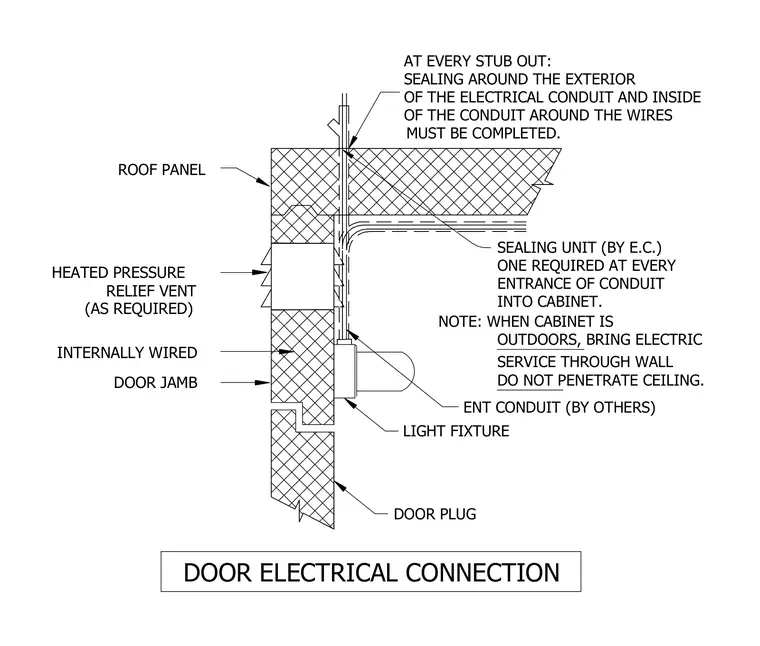

An electrical conduit penetrates a heated pressure relief roof panel to connect with an internally wired door jamb. A sealing unit by the electrical contractor is required at every conduit entrance into the cabinet. Exterior and interior conduit sealing around wires must be completed at every stub out. Electrical service is routed through the wall when the cabinet is outdoors, avoiding ceiling penetration. The assembly includes a light fixture, door plug, and ENT conduit provided by others.
DOOR ELECTRICAL CONNECTION DOOR JAMB INTERNALLY WIRED RELIEF VENT HEATED PRESSURE ROOF PANEL DO NOT PENETRATE CEILING. ENT CONDUIT (BY OTHERS) DOOR PLUG LIGHT FIXTURE INTO CABINET. SEALING UNIT (BY E.C.) NOTE: WHEN CABINET IS ENTRANCE OF CONDUIT OUTDOORS, BRING ELECTRIC SERVICE THROUGH WALL ONE REQUIRED AT EVERY (AS REQUIRED) SEALING AROUND THE EXTERIOR OF THE ELECTRICAL CONDUIT AND INSIDE AT EVERY STUB OUT: OF THE CONDUIT AROUND THE WIRES MUST BE COMPLETED.
