Landscape · L-QPVHE

Root Barrier

Elements

About this detail

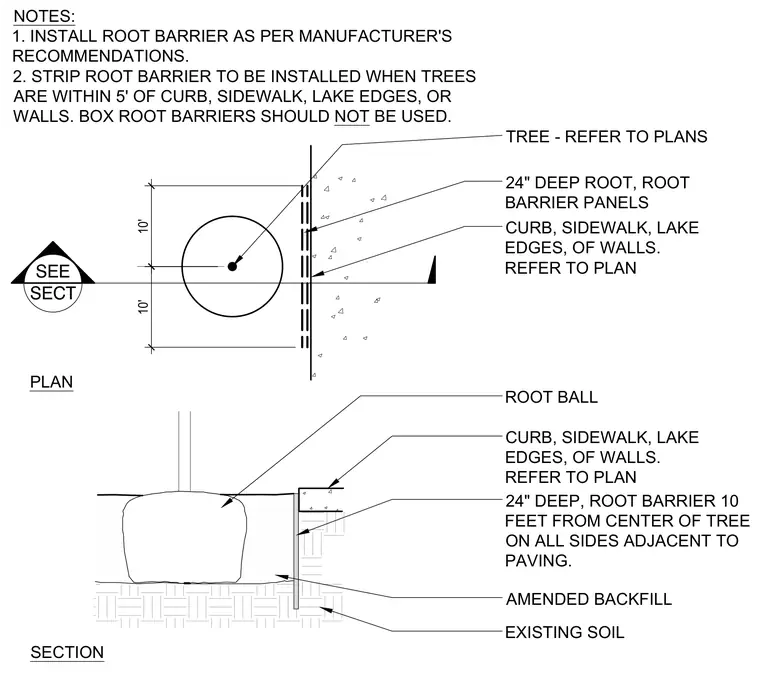

Root barrier installation consists of twenty-four-inch deep root barrier panels positioned ten feet from the center of the tree on all sides adjacent to paving. The root ball is set within amended backfill over existing soil. Strip root barriers are installed when trees are within five feet of curbs, sidewalks, lake edges, or walls, and box root barriers are not used.
