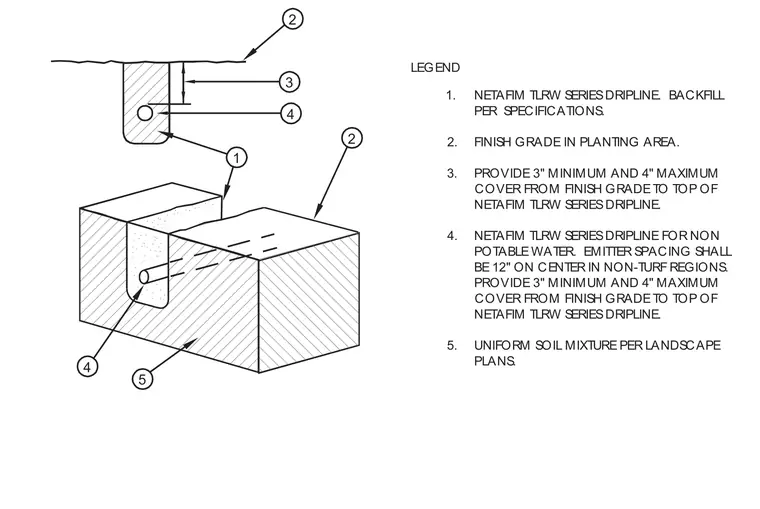

Netafim TLRW series dripline for non-potable water systems is installed within a uniform soil mixture in planting areas. The dripline requires a minimum of 3 inches and a maximum of 4 inches of cover measured from the finish grade to the top of the pipe, with an emitter spacing of 12 inches on center in non-turf regions. Backfill is placed per specifications around the piping embedded within the planting soil mixture.
2 4 5 1 4 3 2 LEGEND 1. NETAFIM TLRW SERIES DRIPLINE. BACKFILL PER SPECIFICATIONS. 2. FINISH GRADE IN PLANTING AREA. 3. PROVIDE 3" MINIMUM AND 4" MAXIMUM COVER FROM FINISH GRADE TO TOP OF NETAFIM TLRW SERIES DRIPLINE. 4. NETAFIM TLRW SERIES DRIPLINE FOR NON POTABLE WATER. EMITTER SPACING SHALL BE 12" ON CENTER IN NON-TURF REGIONS. PROVIDE 3" MINIMUM AND 4" MAXIMUM COVER FROM FINISH GRADE TO TOP OF NETAFIM TLRW SERIES DRIPLINE. 5. UNIFORM SOIL MIXTURE PER LANDSCAPE PLANS.
