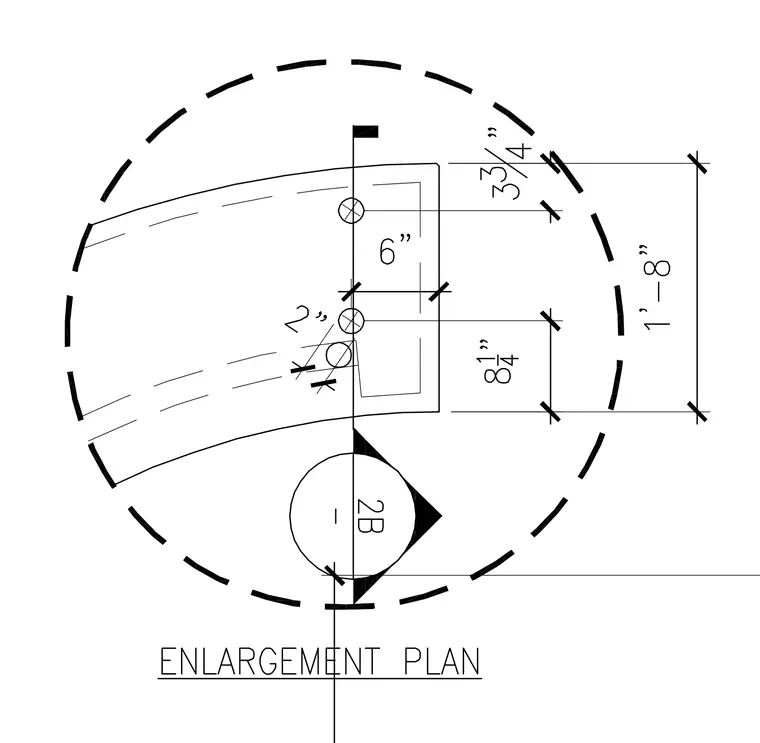

An enlarged plan details a curved element dimensioned at 1 foot 8 inches in overall width, with fastener or anchor locations spaced at 6 inches, 8-1/4 inches, and 3-3/4 inches. Dimensions of 2 inches indicate clearances or edge distances. A section cut marker references detail 2B.
