Irrigation Trenching

Elements

About this detail

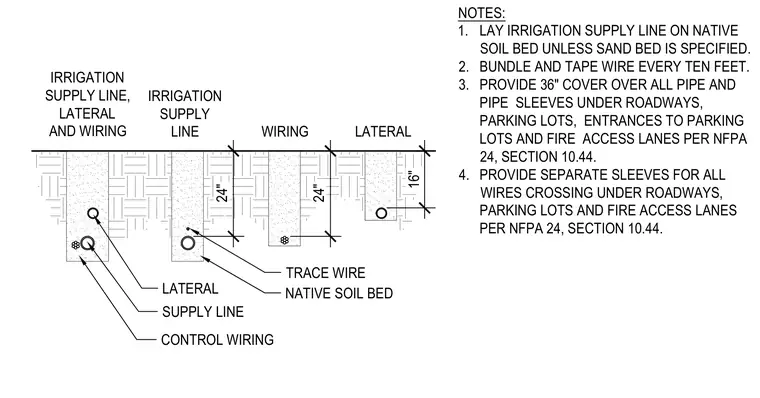

Irrigation supply lines, laterals, control wiring, and trace wires are installed in trenches excavated into a native soil bed. Pipes and wires are placed at specified cover depths of twenty-four inches and sixteen inches, with thirty-six inch cover required under vehicular areas per NFPA 24. Control wires are bundled and taped every ten feet, and separate sleeves are provided for all wires crossing under roadways, parking lots, and fire access lanes.
