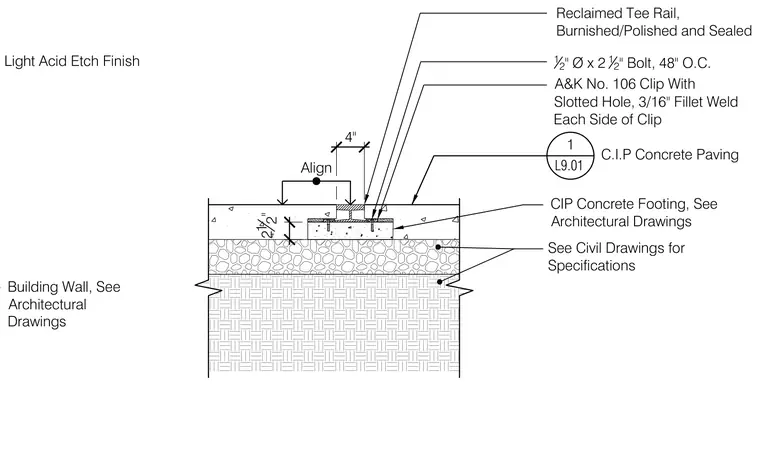

A burnished, polished, and sealed reclaimed tee rail is anchored flush with cast-in-place concrete paving containing a light acid etch finish. The rail is secured with an A&K Number 106 clip featuring a slotted hole and a three-sixteenth-inch fillet weld on each side of the clip. Half-inch diameter by two-and-a-half-inch bolts spaced forty-eight inches on center anchor the assembly into a cast-in-place concrete footing. Sub-base material and the building wall interface are coordinated per civil and architectural drawings.
See Civil Drawings for Specifications 2 1 2" 4" Align CIP Concrete Footing, See Architectural Drawings Reclaimed Tee Rail, Burnished/Polished and Sealed 1 L9.01 C.I.P Concrete Paving 12 " Ø x 2 12 " Bolt, 48" O.C. A&K No. 106 Clip With Slotted Hole, 3/16" Fillet Weld Each Side of Clip Building Wall, See Architectural Drawings Light Acid Etch Finish
