The assembly comprises a six-inch metal stud framing wall with batt insulation and a vapor retarder occurring at exterior conditions. An interior finish is applied as scheduled and coordinated per the room finish schedule. The insulated coiling door is installed with a metal plate jamb assembly, requiring laps and seals in the vapor retarder as conditions occur. Manufacturer details and installation instructions govern the coiling door components.

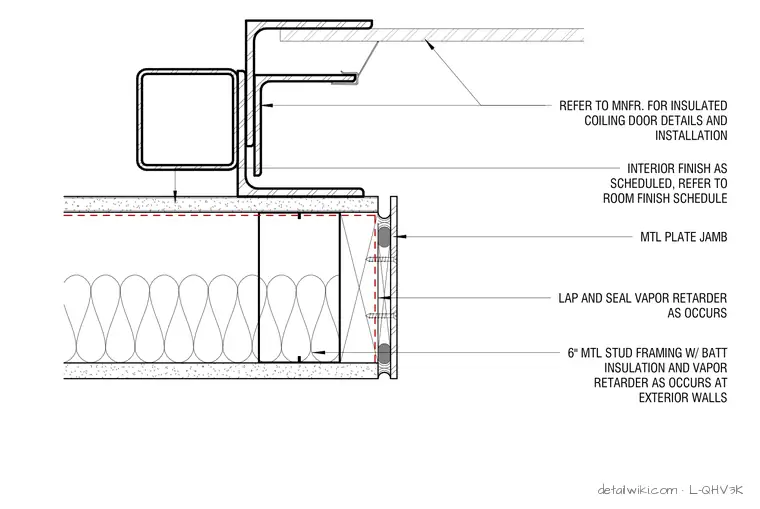

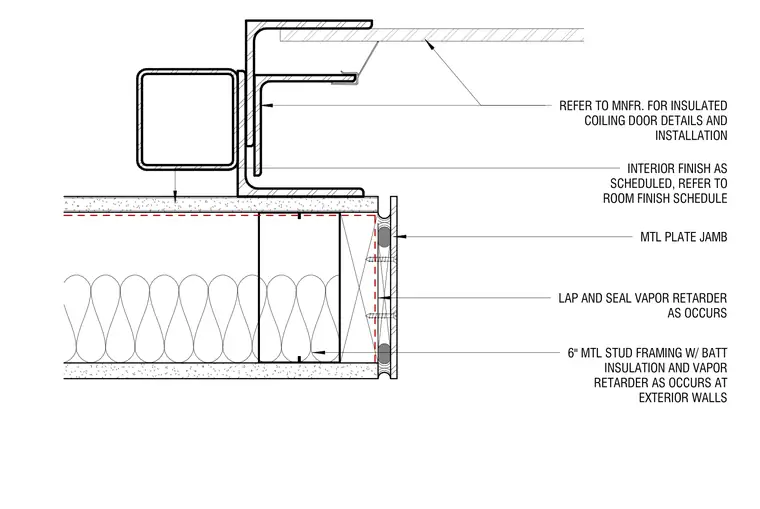

6" MTL STUD FRAMING W/ BATT INSULATION AND VAPOR RETARDER AS OCCURS AT EXTERIOR WALLS INTERIOR FINISH AS SCHEDULED, REFER TO ROOM FINISH SCHEDULE REFER TO MNFR. FOR INSULATED COILING DOOR DETAILS AND INSTALLATION MTL PLATE JAMB LAP AND SEAL VAPOR RETARDER AS OCCURS
