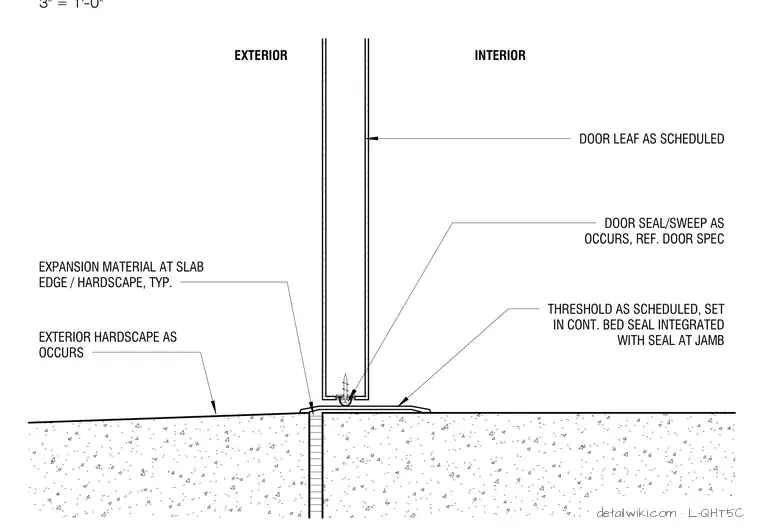

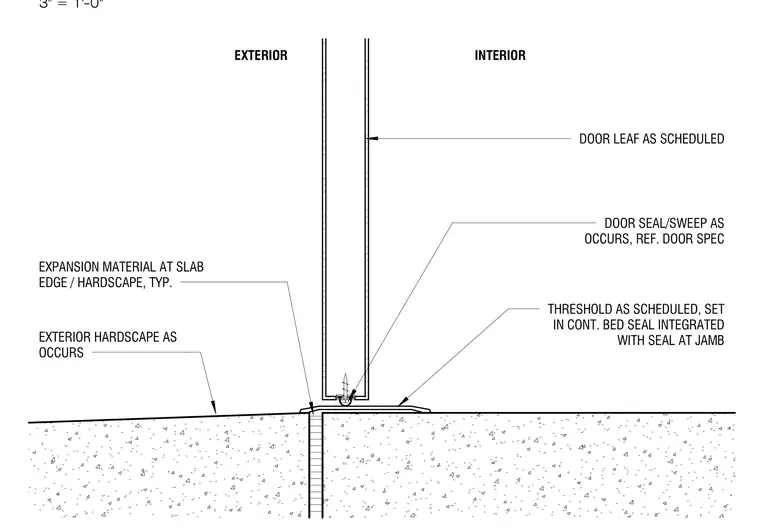

The section details an exterior door threshold condition resting on a concrete slab with exterior hardscape. Key components include a door leaf as scheduled, a door seal or sweep, a threshold set in continuous bed seal integrated with the jamb seal, and expansion material at the slab edge and hardscape. The assembly accommodates a transition between exterior paving and the interior floor.
Text on the drawing
DOOR SEAL/SWEEP AS OCCURS, REF. DOOR SPEC DOOR LEAF AS SCHEDULED EXTERIOR HARDSCAPE AS OCCURS INTERIOR EXTERIOR THRESHOLD AS SCHEDULED, SET IN CONT. BED SEAL INTEGRATED WITH SEAL AT JAMB EXPANSION MATERIAL AT SLAB EDGE / HARDSCAPE, TYP. 3" = 1'-0"
