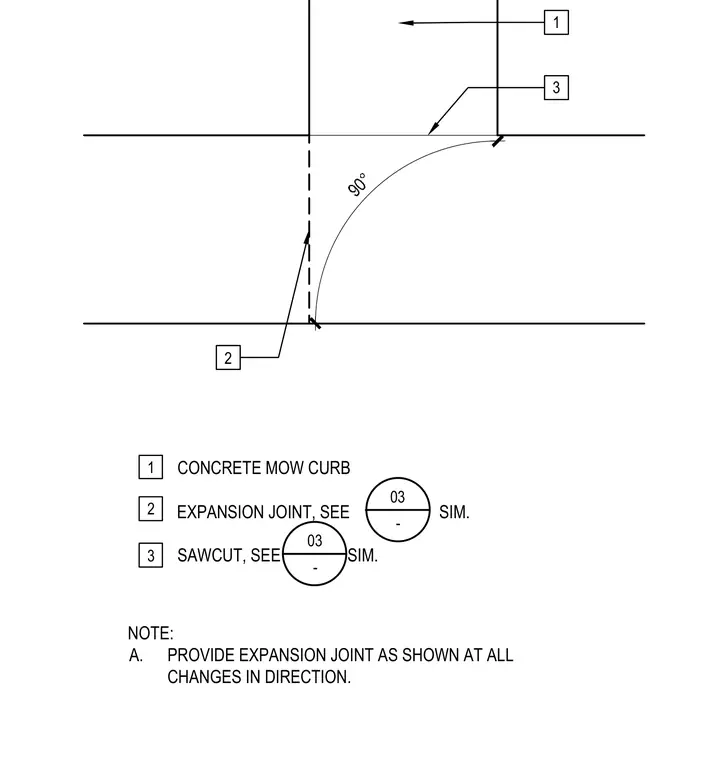

Concrete mow curb featuring an expansion joint at the 90-degree directional change. An expansion joint is provided as shown at all changes in direction. A sawcut is located similarly as indicated.
1 90° 1 2 03 - NOTE: A. PROVIDE EXPANSION JOINT AS SHOWN AT ALL CHANGES IN DIRECTION. 3 03 - 3 2 CONCRETE MOW CURB EXPANSION JOINT, SEE SIM. SAWCUT, SEE SIM.
