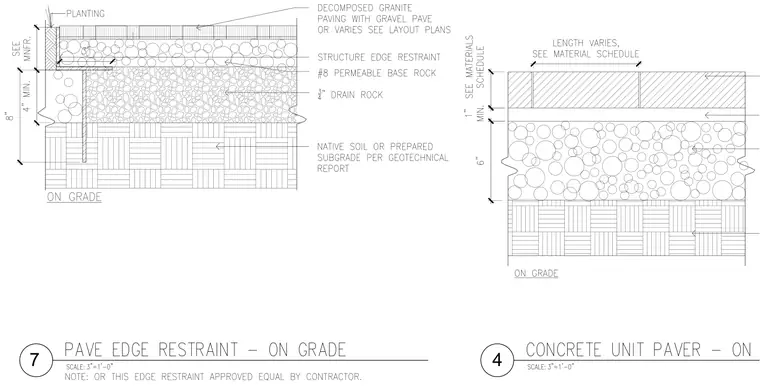

A pave edge restraint on grade retains a decomposed granite paving with gravel pave or a structure edge restraint over number eight permeable base rock and three-quarter inch drain rock. The entire assembly sits above a prepared subgrade or native soil per the geotechnical report. A separate concrete unit paver detail has pavers with a length varying per material schedule over a one-inch minimum setting bed and six inches of aggregate base on grade.
