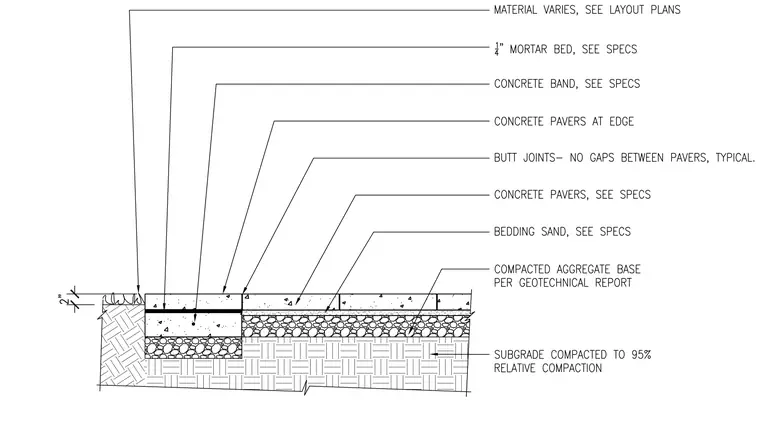

This assembly details exterior unit pavers supported by a compacted aggregate base and subgrade compacted to ninety-five percent relative compaction. The surface layer consists of concrete pavers featuring butt joints with no gaps between pavers, installed over a bedding sand layer sized per specifications. Edge conditions incorporate a concrete band and concrete pavers at the edge over a one-quarter inch mortar bed, with edge materials varying per layout plans.
