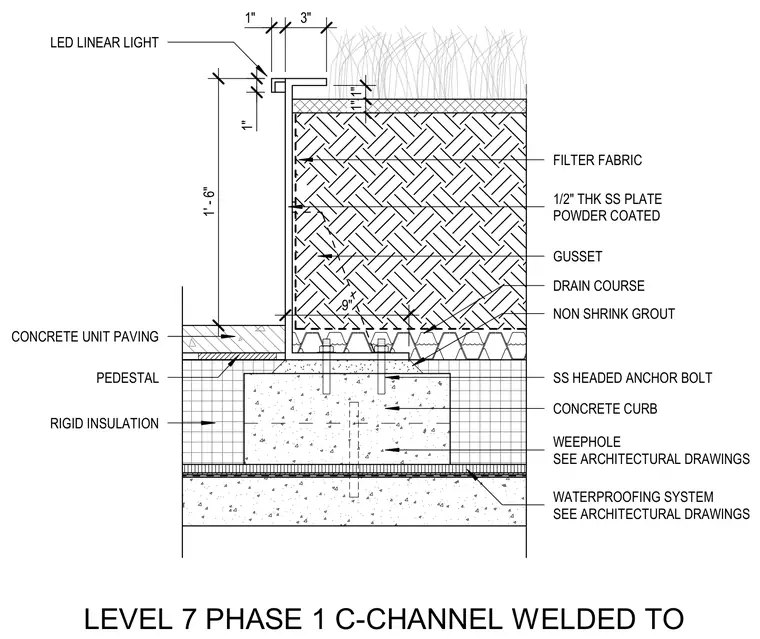

A raised concrete planter curb assembly rests on rigid insulation and a waterproofing system. The 1'-6" high curb is anchored to the structural slab using stainless steel headed anchor bolts embedded in non-shrink grout. A 1/2-inch thick powder-coated stainless steel plate with gussets supports an integrated LED linear light at the top corner. Drainage layers include a drain course, filter fabric, and weepholes sized per architectural drawings. Adjacent concrete unit paving rests on pedestals over the insulated waterproofing assembly.
1/2" THK SS PLATE POWDER COATED GUSSET SS HEADED ANCHOR BOLT CONCRETE CURB WATERPROOFING SYSTEM SEE ARCHITECTURAL DRAWINGS LED LINEAR LIGHT CONCRETE UNIT PAVING PEDESTAL RIGID INSULATION DRAIN COURSE 9" NON SHRINK GROUT 1" 1" 1' - 6" 1" 3" 1" WEEPHOLE SEE ARCHITECTURAL DRAWINGS FILTER FABRIC LEVEL 7 PHASE 1 C-CHANNEL WELDED TO
