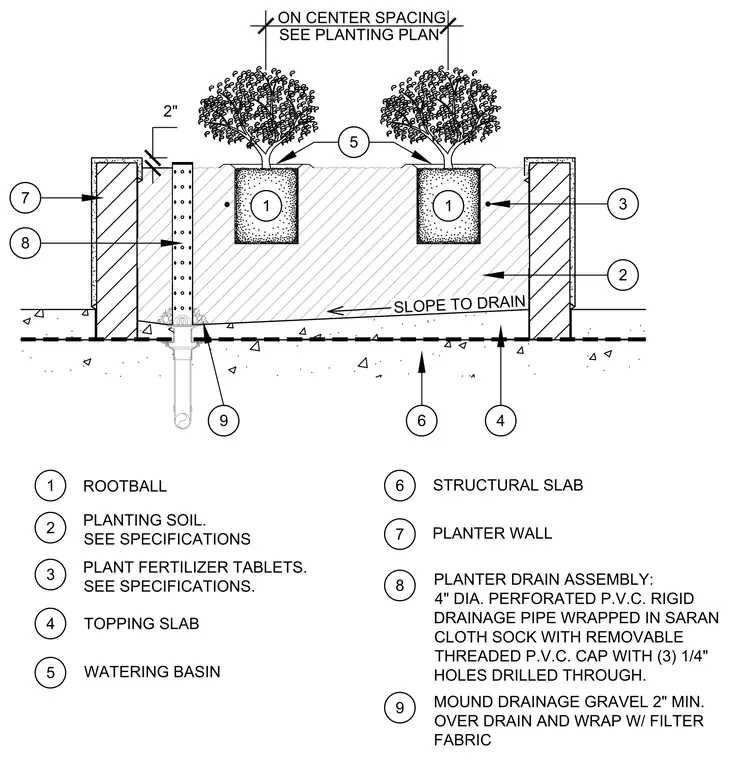

This shrub planter assembly is constructed over a structural slab with an applied topping slab sloped to drain. The planter walls enclose planting soil mixed with plant fertilizer tablets surrounding the rootballs of shrubs featuring watering basins. A four-inch diameter perforated rigid polyvinyl chloride drainage pipe, wrapped in a saran cloth sock and fitted with a removable threaded polyvinyl chloride cap featuring three quarter-inch drilled holes, provides sub-surface drainage. Drainage gravel with a two-inch minimum thickness mounded over the drain is wrapped in filter fabric.
2 1 3 4 2 7 6 ROOTBALL PLANTING SOIL. SEE SPECIFICATIONS PLANT FERTILIZER TABLETS. SEE SPECIFICATIONS. TOPPING SLAB STRUCTURAL SLAB PLANTER WALL 7 SEE PLANTING PLAN ON CENTER SPACING 1 1 5 3 8 WATERING BASIN 2" 5 SLOPE TO DRAIN 4 6 PLANTER DRAIN ASSEMBLY: 4" DIA. PERFORATED P.V.C. RIGID DRAINAGE PIPE WRAPPED IN SARAN CLOTH SOCK WITH REMOVABLE THREADED P.V.C. CAP WITH (3) 1/4" HOLES DRILLED THROUGH. 8 9 MOUND DRAINAGE GRAVEL 2" MIN. OVER DRAIN AND WRAP W/ FILTER FABRIC 9
