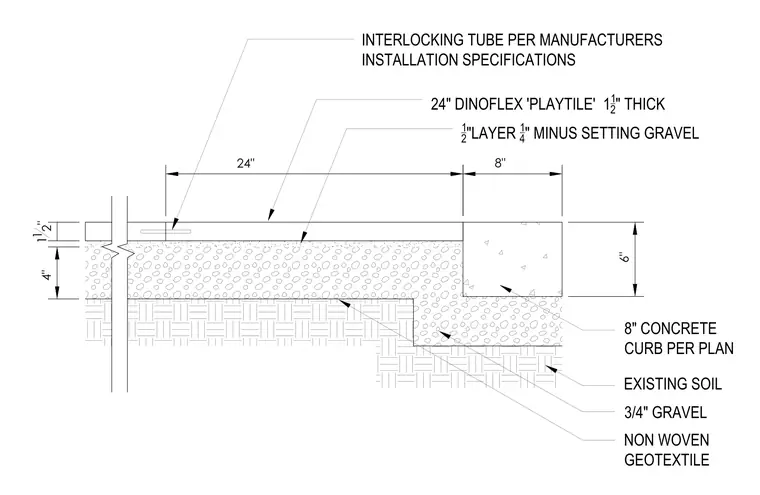

The assembly consists of one-and-a-half-inch thick Dinoflex playtiles installed over a one-half-inch layer of one-quarter-inch minus setting gravel. The surfacing system is supported by a four-inch layer of three-quarter-inch gravel placed over a non-woven geotextile separating it from existing soil. Interlocking tubes are integrated per the manufacturer's installation specifications. An eight-inch concrete curb keyed per plan restrains the perimeter of the surfacing system.
24" 8" 24" DINOFLEX 'PLAYTILE' 1 1 2 " THICK EXISTING SOIL 3/4" GRAVEL NON WOVEN GEOTEXTILE 8" CONCRETE CURB PER PLAN 1 2 "LAYER 1 4 " MINUS SETTING GRAVEL INTERLOCKING TUBE PER MANUFACTURERS INSTALLATION SPECIFICATIONS
