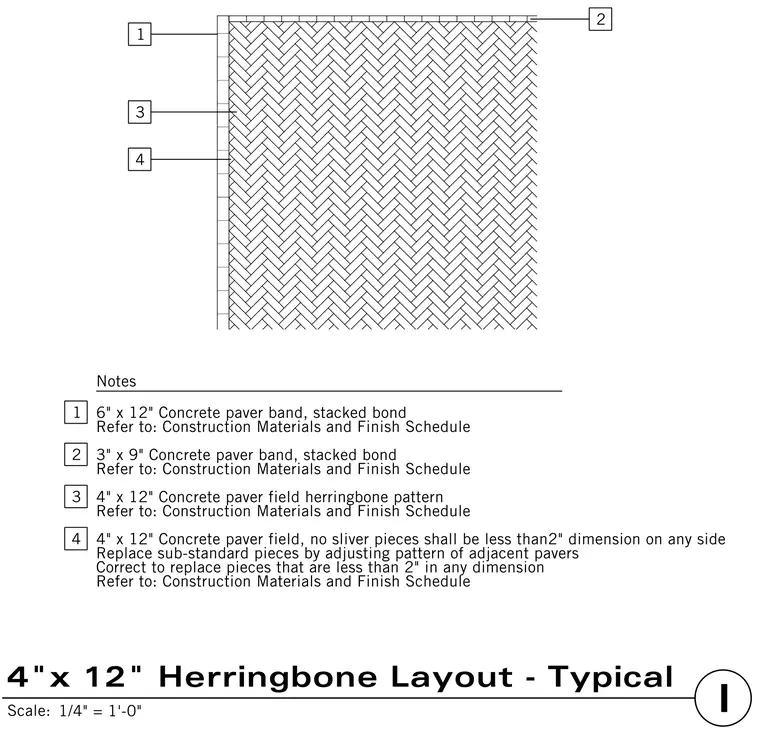

This drawing outlines a typical concrete paver layout featuring a 4" x 12" concrete paver field set in a herringbone pattern. The perimeter is bordered by a 6" x 12" concrete paver band in stacked bond and a 3" x 9" concrete paver band in stacked bond. Sub-standard pieces in the field are restricted from having any dimension less than 2" and require pattern adjustments of adjacent pavers for correction. All materials refer to the construction materials and finish schedule.
