A six-inch wide concrete header acts as a mow curb and transitions to a synthetic turf system over compacted subgrade. A composite wood nailer is anchored alongside the curb with continuous number four rebar and construction nails spaced twenty-four inches on center, secured using epoxy adhesive. An impermeable liner laps up the side of the concrete curb and composite wood nailer to contain the base material.

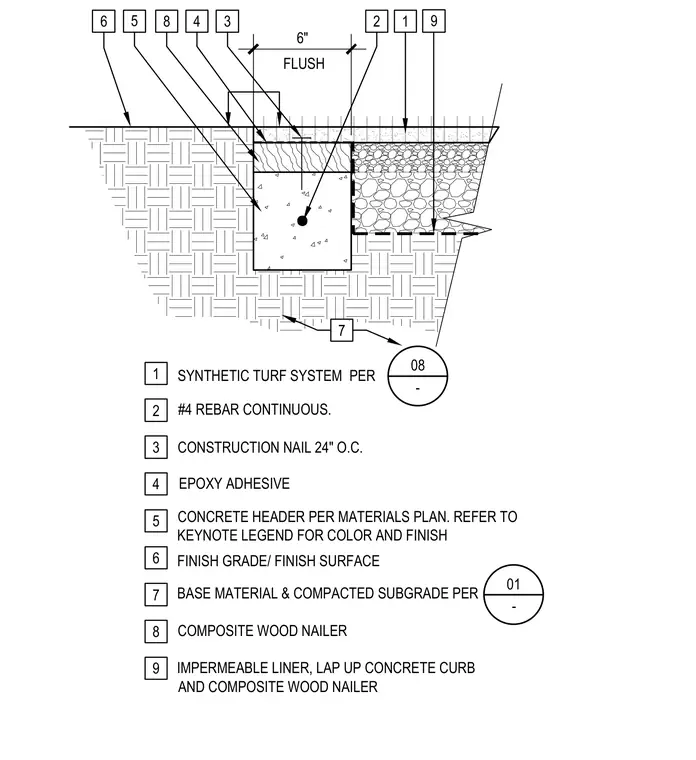

SYNTHETIC TURF SYSTEM PER #4 REBAR CONTINUOUS. CONSTRUCTION NAIL 24" O.C. BASE MATERIAL & COMPACTED SUBGRADE PER FINISH GRADE/ FINISH SURFACE 6" EPOXY ADHESIVE CONCRETE HEADER PER MATERIALS PLAN. REFER TO KEYNOTE LEGEND FOR COLOR AND FINISH FLUSH COMPOSITE WOOD NAILER 6 5 8 4 3 2 1 08 - 01 - 1 2 3 4 5 6 7 8 7 IMPERMEABLE LINER, LAP UP CONCRETE CURB AND COMPOSITE WOOD NAILER 9 9
