Landscape · L-Q7HDM

Toro Drip Zone Kit

Materials

About this detail

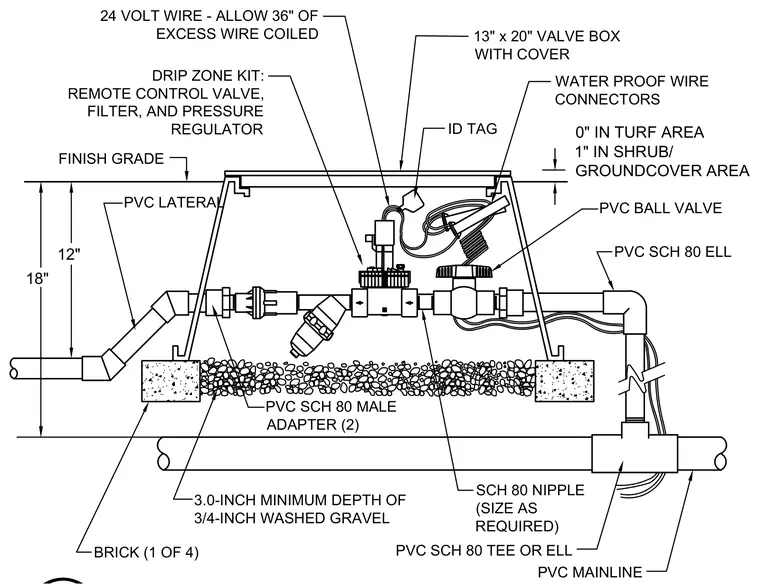

An irrigation drip zone assembly is housed within a thirteen by twenty-inch valve box featuring a cover and set upon a three-inch minimum depth of three-quarter-inch washed gravel supported by four bricks. The assembly integrates a remote control valve, filter, and pressure regulator connected to a PVC mainline via schedule eighty PVC fittings, tees, ells, and a ball valve with a sized nipple. Waterproof wire connectors join the twenty-four volt wire, which maintains thirty-six inches of coiled excess wire along with an identification tag. The valve box rim is positioned level with finish grade in turf areas and one inch above finish grade in shrub or groundcover areas.
