Landscape · L-Q5PTD

Drip Zone Kit in Valve Box

Elements

About this detail

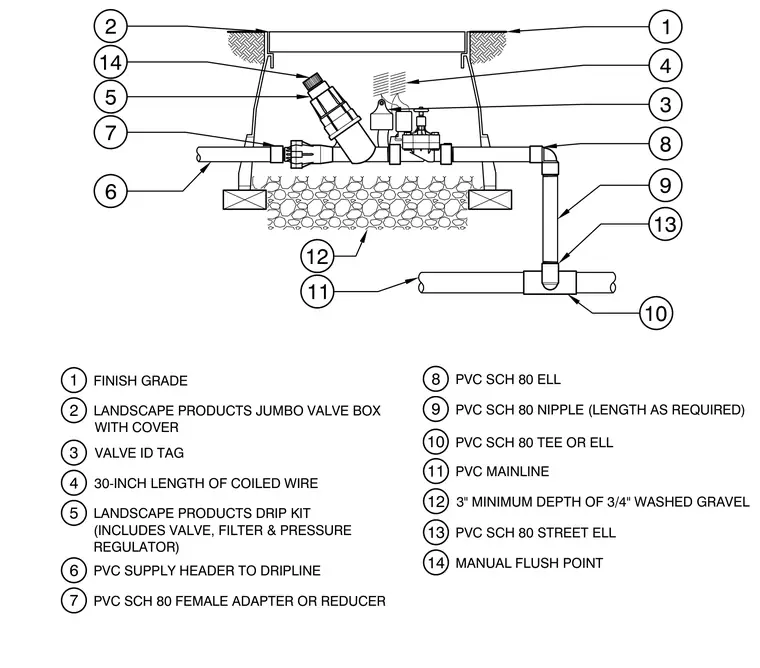

An irrigation valve box assembly connects a PVC mainline to a drip zone distribution system below the finish grade. A landscape products jumbo valve box with cover encloses a drip kit containing an electric control valve, filter, and pressure regulator. The assembly ties into the PVC mainline using Schedule 80 PVC fittings, including a tee or ell, a nipple of required length, a street ell, and an ell directing flow to a female adapter or reducer. A valve identification tag and thirty inches of coiled wire attach to the valve for identification and connection. A manual flush point is installed downstream of the drip kit before the PVC supply header transitions to the dripline. The entire valve box rests on a minimum three-inch depth of three-quarter-inch washed gravel for drainage.
