Cast-in-place concrete paving incorporates control joints with specific depth and width requirements. A dowel basket assembly with speed dowels transfers load across the joint, positioned within a slab of thickness sized per structural drawings. An alternate decorative saw cut joint utilizes a one-eighth inch width with depth specified at one quarter of the slab thickness typically.

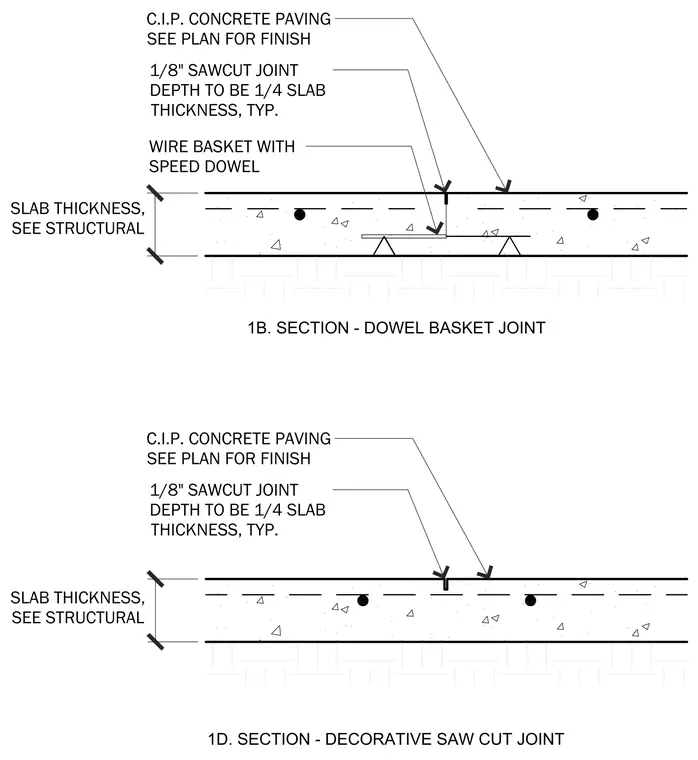

1B. SECTION - DOWEL BASKET JOINT SLAB THICKNESS, SEE STRUCTURAL 1D. SECTION - DECORATIVE SAW CUT JOINT SLAB THICKNESS, SEE STRUCTURAL C.I.P. CONCRETE PAVING SEE PLAN FOR FINISH 1/8" SAWCUT JOINT DEPTH TO BE 1/4 SLAB THICKNESS, TYP. WIRE BASKET WITH SPEED DOWEL C.I.P. CONCRETE PAVING SEE PLAN FOR FINISH 1/8" SAWCUT JOINT DEPTH TO BE 1/4 SLAB THICKNESS, TYP.
