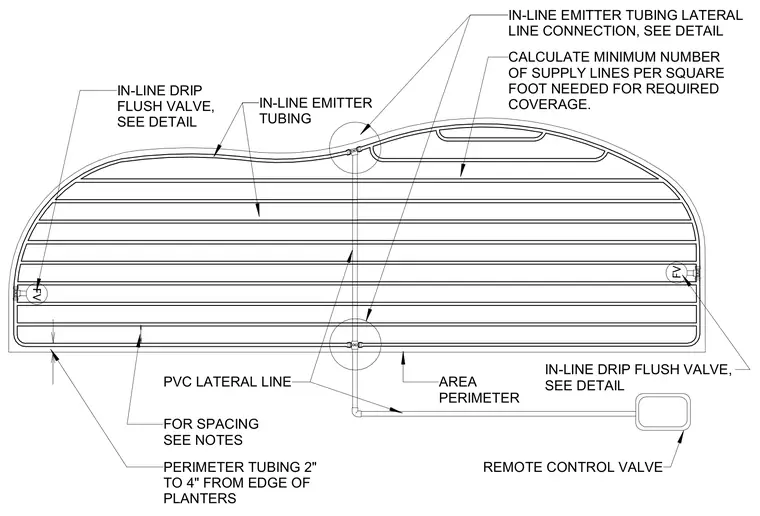

An in-line emitter tubing lateral connects to a PVC lateral line fed by a remote control valve. In-line emitter tubing runs parallel across the planter area with perimeter tubing positioned two to four inches from the edge of the planters. In-line drip flush valves are installed at the terminal ends of the lines. Minimum supply lines per square foot are calculated to ensure required irrigation coverage.
FV FV REMOTE CONTROL VALVE IN-LINE EMITTER TUBING LATERAL LINE CONNECTION, SEE DETAIL AREA PERIMETER FOR SPACING SEE NOTES IN-LINE EMITTER TUBING IN-LINE DRIP FLUSH VALVE, SEE DETAIL PERIMETER TUBING 2" TO 4" FROM EDGE OF PLANTERS IN-LINE DRIP FLUSH VALVE, SEE DETAIL PVC LATERAL LINE CALCULATE MINIMUM NUMBER OF SUPPLY LINES PER SQUARE FOOT NEEDED FOR REQUIRED COVERAGE.
