Landscape · L-Q3664

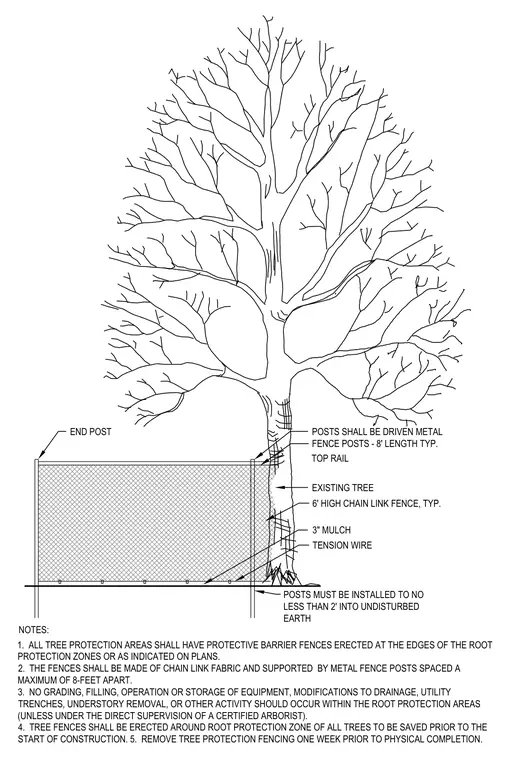

Tree Protection Fence Detail

Materials

Elements

About this detail

Protective tree barrier fences are erected at the edges of root protection zones or as indicated on plans prior to construction. The assembly consists of six-foot high chain link fabric supported by driven metal fence posts that are eight feet in length and spaced a maximum of eight feet apart. Posts must be installed to no less than two feet into undisturbed earth. The fence incorporates a top rail and tension wire, and is installed around an existing tree surrounded by three inches of mulch.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
