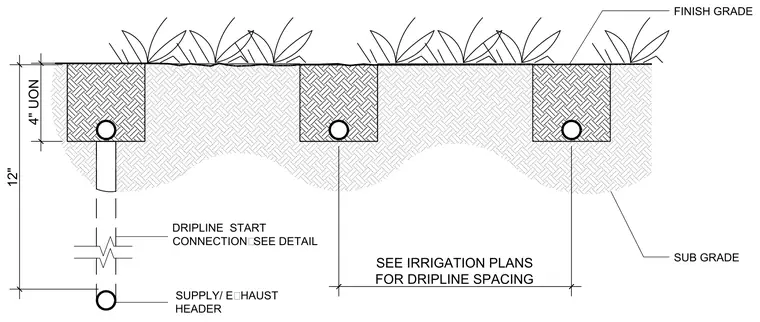

A subsurface drip irrigation assembly connects a supply and exhaust header to a dripline via a riser pipe. The buried lateral lines sit four inches below finish grade unless otherwise noted, with dripline spacing determined per irrigation plans. The entire assembly is embedded in subgrade twelve inches below the finish grade surface.
12" SUB GRADE FINISH GRADE 4" UON SEE IRRIGATION PLANS FOR DRIPLINE SPACING SUPPLY/ EXHAUST HEADER DRIPLINE START CONNECTION: SEE DETAIL
