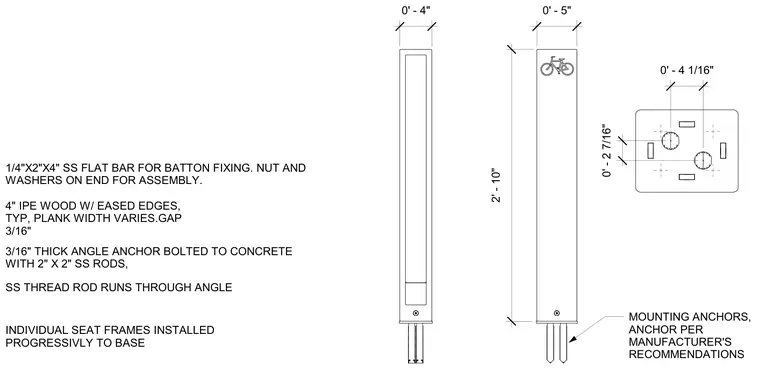

Stainless steel flat bars and threaded rods secure individual wood planks with eased edges. A three-sixteenths-inch thick angle anchor bolts to the concrete substrate using stainless steel rods and threaded fasteners. Individual seat frames install progressively to the base mounting anchors in accordance with manufacturer recommendations.
1/4"X2"X4" SS FLAT BAR FOR BATTON FIXING. NUT AND WASHERS ON END FOR ASSEMBLY. 3/16" THICK ANGLE ANCHOR BOLTED TO CONCRETE WITH 2" X 2" SS RODS, SS THREAD ROD RUNS THROUGH ANGLE 4" IPE WOOD W/ EASED EDGES, TYP, PLANK WIDTH VARIES.GAP 3/16" INDIVIDUAL SEAT FRAMES INSTALLED PROGRESSIVLY TO BASE MOUNTING ANCHORS, ANCHOR PER MANUFACTURER'S RECOMMENDATIONS 0' - 4" 0' - 5" 2' - 10" 0' - 4 1/16" 0' - 2 7/16"
