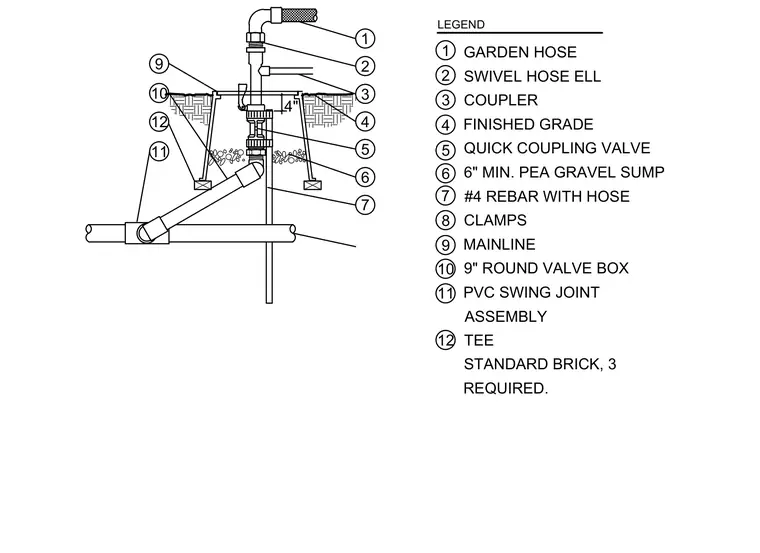

A quick coupling valve installation connects to an underground mainline via a PVC swing joint assembly and tee. The valve is housed inside a nine-inch round valve box set above a six-inch minimum pea gravel sump for drainage. Support is provided by standard bricks and a number four rebar secured with hose clamps. The top of the assembly connects to a swivel hose ell and garden hose at the finished grade.
LEGEND GARDEN HOSE SWIVEL HOSE ELL COUPLER FINISHED GRADE QUICK COUPLING VALVE 6" MIN. PEA GRAVEL SUMP #4 REBAR WITH HOSE CLAMPS MAINLINE 9" ROUND VALVE BOX PVC SWING JOINT ASSEMBLY TEE STANDARD BRICK, 3 REQUIRED. 1 4" 1 9 10 12 11 2 3 4 5 6 7 2 3 4 5 6 7 8 9 10 11 12
