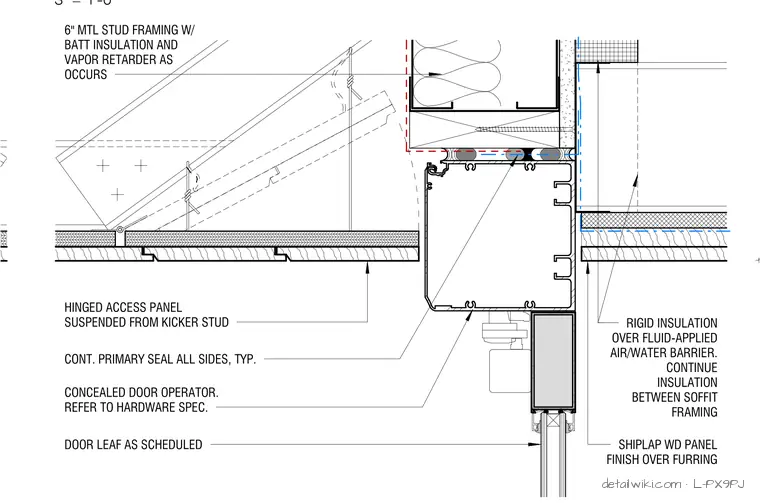

A concealed door operator and closer are integrated into the soffit assembly above the door leaf as scheduled. The assembly consists of six-inch metal stud framing with batt insulation and a vapor retarder, wrapped with rigid insulation over a fluid-applied air and water barrier. A hinged access panel is suspended from kicker studs to allow maintenance of the operator. Continuous primary sealant is applied at all sides around the operator housing. Shiplap wood panel finishes are installed over furring strips at the adjacent ceiling and soffit areas.
CONCEALED DOOR OPERATOR. REFER TO HARDWARE SPEC. SHIPLAP WD PANEL FINISH OVER FURRING STRIPS 6" MTL STUD FRAMING W/ BATT INSULATION AND VAPOR RETARDER AS OCCURS HINGED ACCESS PANEL SUSPENDED FROM KICKER STUD CONT. PRIMARY SEAL ALL SIDES, TYP. DOOR LEAF AS SCHEDULED RIGID INSULATION OVER FLUID-APPLIED AIR/WATER BARRIER. CONTINUE INSULATION BETWEEN SOFFIT FRAMING CONCEALED DOOR OPERATOR. 6" MTL STUD FRAMING W/ BATT INSULATION AND VAPOR RETARDER AS HINGED ACCESS PANEL SQUARE EDGE WD TRIM 3" = 1'-0"
