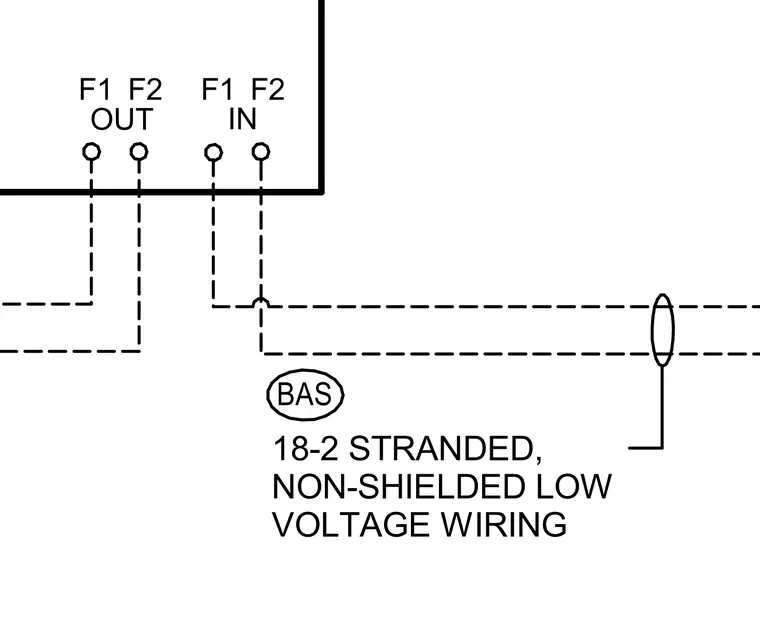

The unit connects to the building automation system using eighteen gauge two conductor stranded non-shielded low voltage wiring. Communication lines route to the F1 and F2 terminal connections designated for input and output. The dashed lines indicate low voltage signal pathways extending from the terminal block.
