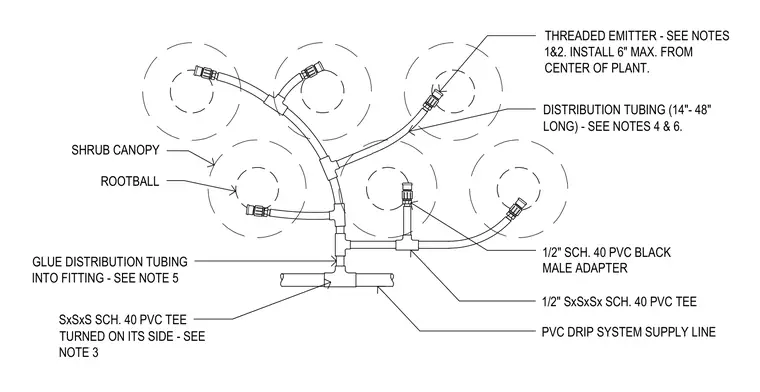

A PVC drip system supply line connects to an arrangement of shrub canopies and rootballs using schedule 40 PVC tees and distribution tubing. A half-inch schedule 40 PVC black male adapter ties into a half-inch side-by-side-by-side-by-side schedule 40 PVC tee, while distribution tubing ranging from fourteen to forty-eight inches in length links to threaded emitters. The threaded emitters install a maximum of six inches from the center of the plant. Distribution tubing is glued directly into the fitting.
PVC DRIP SYSTEM SUPPLY LINE SHRUB CANOPY ROOTBALL GLUE DISTRIBUTION TUBING INTO FITTING - SEE NOTE 5 SxSxS SCH. 40 PVC TEE TURNED ON ITS SIDE - SEE NOTE 3 1/2" SCH. 40 PVC BLACK MALE ADAPTER 1/2" SxSxSx SCH. 40 PVC TEE THREADED EMITTER - SEE NOTES 1&2. INSTALL 6" MAX. FROM CENTER OF PLANT. DISTRIBUTION TUBING (14"- 48" LONG) - SEE NOTES 4 & 6.
