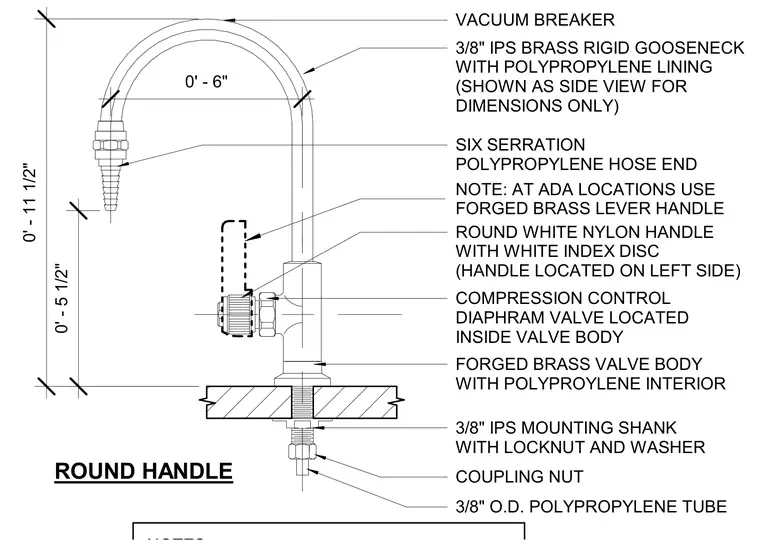

A three-eighths inch IPS brass rigid gooseneck with polypropylene lining connects to a forged brass valve body containing a compression control diaphragm valve. The assembly features a round white nylon handle with a white index disc located on the left side, with an optional forged brass lever handle for ADA locations. A six-serration polypropylene hose end attaches via coupling nut to a three-eighths inch outside diameter polypropylene tube. The unit mounts through the deck using a three-eighths inch IPS mounting shank secured with a locknut and washer.
ROUND WHITE NYLON HANDLE WITH WHITE INDEX DISC (HANDLE LOCATED ON LEFT SIDE) 0' - 6" 0' - 11 1/2" 0' - 5 1/2" ROUND HANDLE SIX SERRATION POLYPROPYLENE HOSE END 3/8" IPS BRASS RIGID GOOSENECK WITH POLYPROPYLENE LINING (SHOWN AS SIDE VIEW FOR DIMENSIONS ONLY) COMPRESSION CONTROL DIAPHRAM VALVE LOCATED INSIDE VALVE BODY FORGED BRASS VALVE BODY WITH POLYPROYLENE INTERIOR 3/8" IPS MOUNTING SHANK WITH LOCKNUT AND WASHER COUPLING NUT 3/8" O.D. POLYPROPYLENE TUBE NOTE: AT ADA LOCATIONS USE FORGED BRASS LEVER HANDLE VACUUM BREAKER
