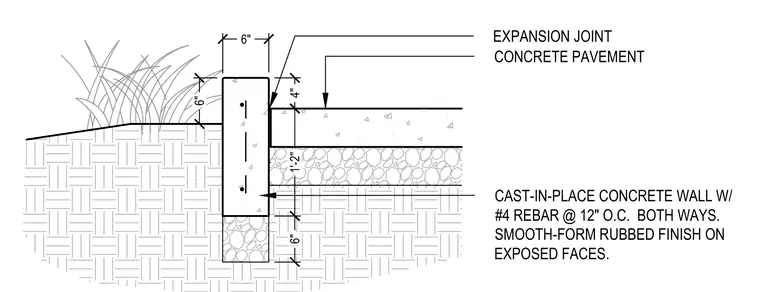

A six-inch wide cast-in-place concrete wall is reinforced with number four rebar at twelve inches on center both ways and features a smooth-form rubbed finish on exposed faces. The wall rests on a gravel base and meets concrete pavement with an intervening expansion joint. The concrete pavement is placed over a compacted aggregate base course.
1'-2" 6" CONCRETE PAVEMENT 4" 6" EXPANSION JOINT 6" CAST-IN-PLACE CONCRETE WALL W/ #4 REBAR @ 12" O.C. BOTH WAYS. SMOOTH-FORM RUBBED FINISH ON EXPOSED FACES.
