Architectural · L-PPFNN

Outdoor Grill Unit and Counter Cross Section

Materials

Concrete Reinforced Concrete Steel Timber / Wood

Elements

Doors Floors / Slabs Millwork / Casework Connections / Plates Reinforcing Roof / Floor Openings

Connections

HSS Connection

About this detail

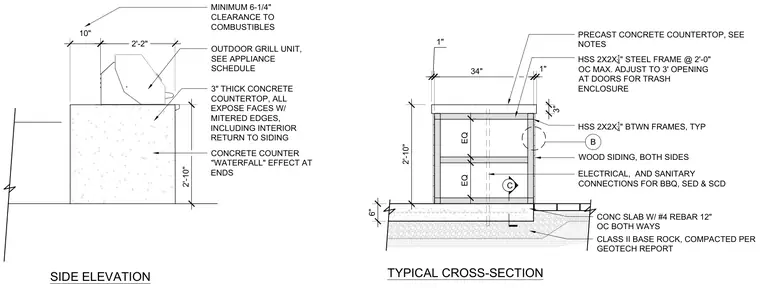

This assembly details an outdoor grill unit mounted on a three-inch thick precast concrete countertop with mitered edges and a waterfall effect at the ends. The support structure consists of hollow structural section 2x2x1/4-inch steel framing spaced at two feet on center maximum, adjusted to a three-foot opening at doors for a trash enclosure. Wood siding is applied to both sides of the structural frame. The unit bears on a four-inch concrete slab reinforced with number four rebar at twelve inches on center each way, over a six-inch compacted Class II base rock subbase.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
