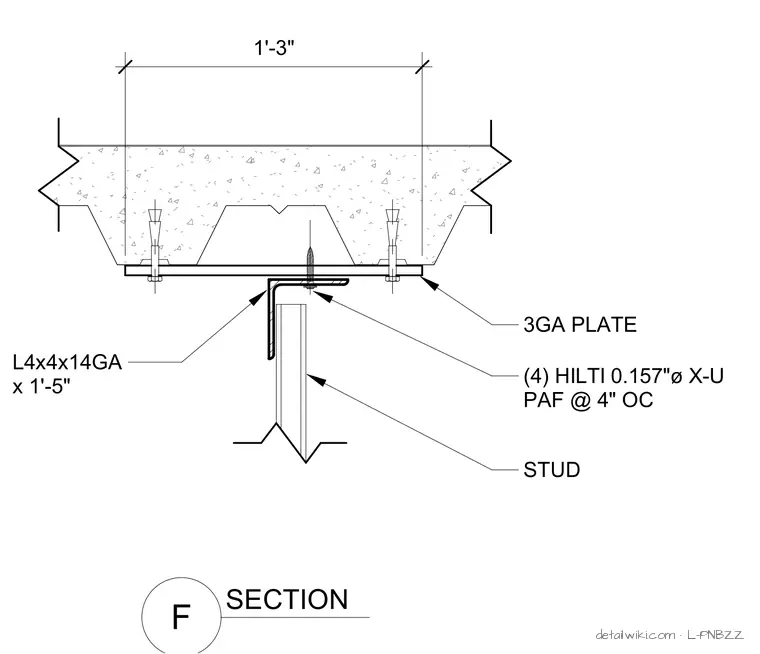

The assembly details a structural connection where a cold-formed steel stud connects to a steel angle (L4x4x14GA x 1'-5"), which is fastened via Hilti powder-actuated fasteners (PAF) and anchors to a 3GA steel plate secured beneath a concrete metal deck floor assembly.
Text on the drawing
(4) HILTI 0.157"ø X-U PAF @ 4" OC L4x4x14GA x 1'-5" 3GA PLATE STUD 1'-3" SECTION F
