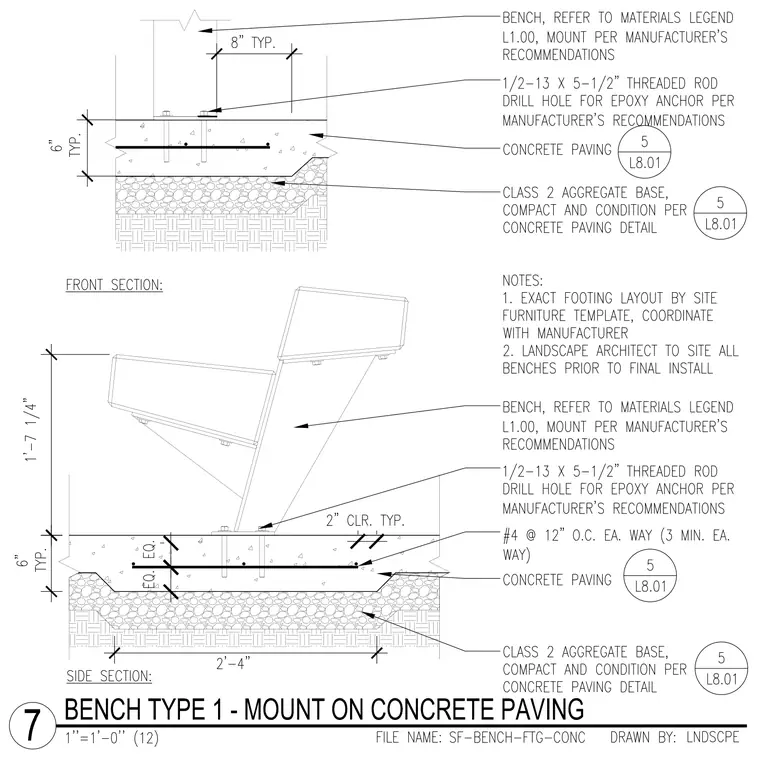

A site bench is anchored to a six-inch concrete paving slab using one-half-inch by five-and-one-half-inch threaded rods secured with epoxy anchors drilled per the manufacturer's recommendations. The concrete paving slab is reinforced with number four rebar spaced at twelve inches on center each way with a minimum of three bars each way, bearing upon a compacted Class 2 aggregate base. The bench is installed according to the materials legend and manufacturer recommendations, with exact footing layouts coordinated through site furniture templates.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
