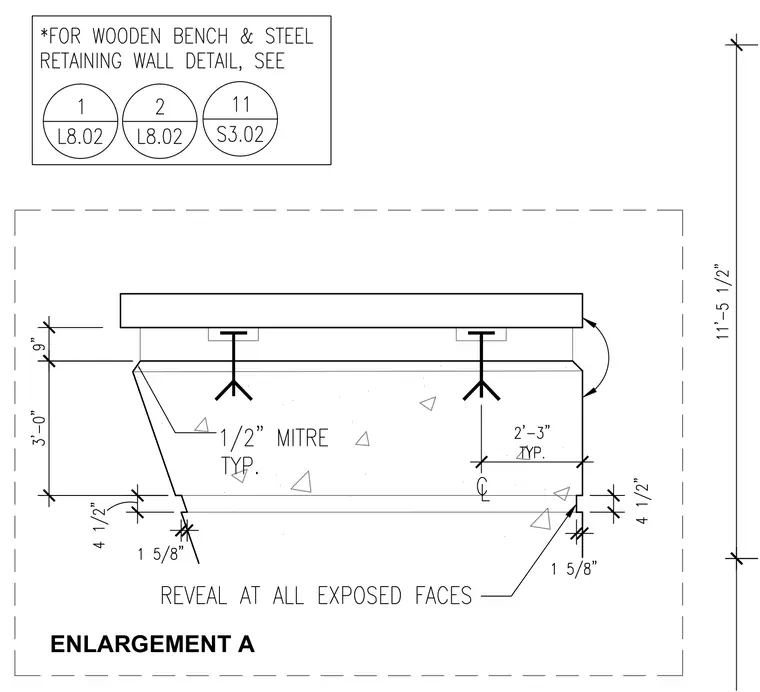

A wooden bench seat is mounted atop a concrete retaining wall using embedded steel supports anchored into the concrete mass. The concrete wall features a one-half-inch typical mitred edge and four-and-one-half-inch reveals at all exposed faces. Overall wall height measures three feet with a nine-inch upper offset. Additional reference callouts direct attention to related wooden bench and steel retaining wall details on sheets L8.02 and S3.02.
