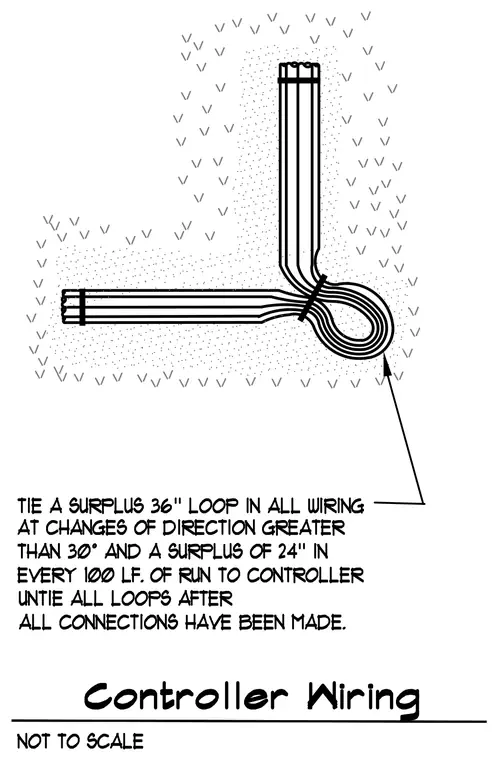

Irrigation controller wiring incorporates a surplus thirty-six inch service loop at all changes of direction greater than thirty degrees. An additional surplus twenty-four inch loop is provided in every one hundred linear feet of run to the controller. All wiring bundles are secured with ties. Loops are untied after all electrical connections have been completed.
