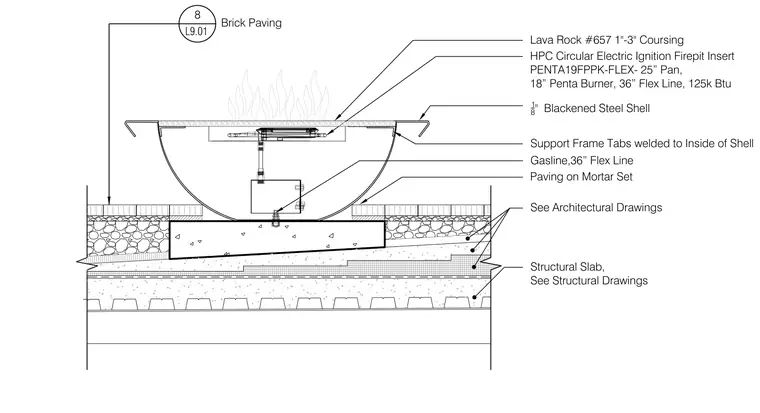

An HPC circular electric ignition firepit insert features a twenty-five-inch pan and an eighteen-inch penta burner set within a one-eighth-inch blackened steel shell. Support frame tabs are welded to the inside of the shell to secure the insert assembly. A thirty-six-inch flex line connects the gas supply to the burner control box. The entire steel shell bears on paving set in mortar over a structural concrete slab assembly coordinated with architectural and structural drawings.
HPC Circular Electric Ignition Firepit Insert PENTA19FPPK-FLEX- 25” Pan, 18” Penta Burner, 36” Flex Line, 125k Btu Lava Rock #657 1"-3" Coursing Gasline,36” Flex Line Support Frame Tabs welded to Inside of Shell 1 8 " Blackened Steel Shell Paving on Mortar Set Structural Slab, See Structural Drawings See Architectural Drawings 8 L9.01 Brick Paving
