L-P2YFP — 1-Hr/2-Hr Firestopping @ Pipe Penetration Sm

Landscape · L-P2YFP

1-Hr/2-Hr Firestopping @ Pipe Penetration Sm

Units: imperial
Sheet: LO-A9.6.2
Discipline: Landscape

Materials

Elements

Floors / Slabs Partitions Roof / Floor Openings Walls

Text on the drawing

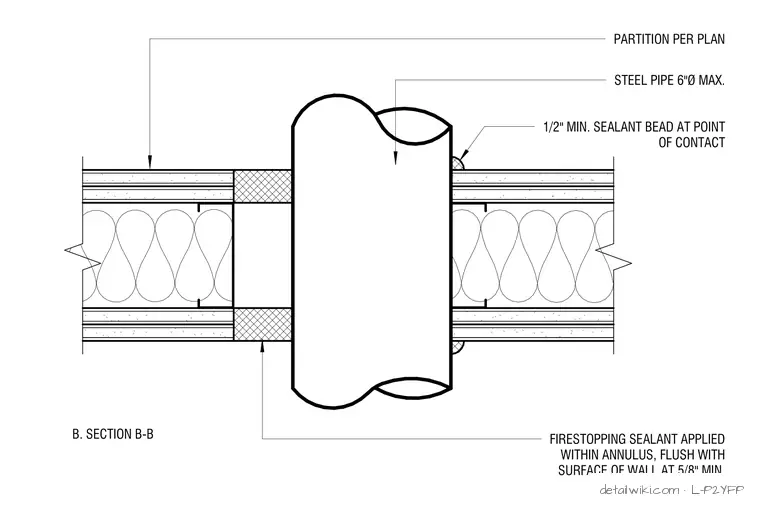

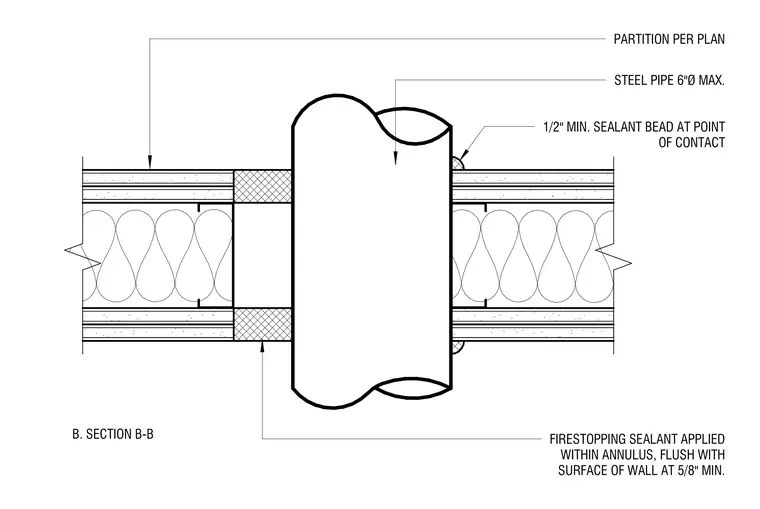

B. SECTION B-B PARTITION PER PLAN STEEL PIPE 6"Ø MAX. FIRESTOPPING SEALANT APPLIED WITHIN ANNULUS, FLUSH WITH SURFACE OF WALL AT 5/8" MIN. 1/2" MIN. SEALANT BEAD AT POINT OF CONTACT
