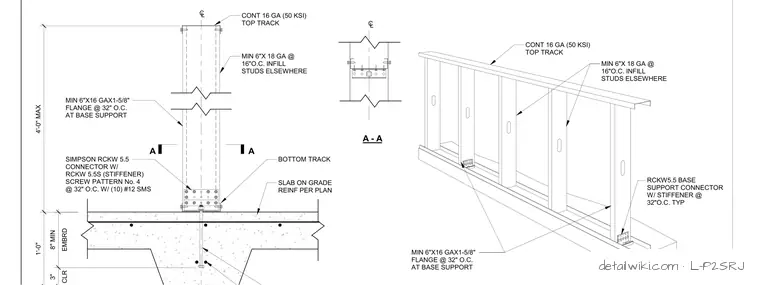

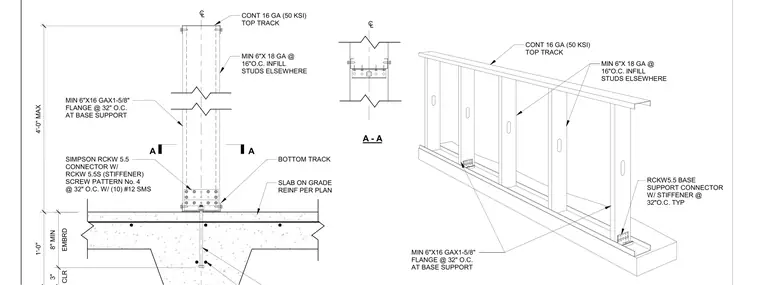

A continuous sixteen-gauge fifty-ksi top track caps the framing assembly, while minimum six-inch eighteen-gauge infill studs space at sixteen inches on center elsewhere. Minimum six-inch sixteen-gauge studs with one-and-five-eighth-inch flanges space at thirty-two inches on center at the base support. A bottom track anchors to the reinforced concrete slab on grade with three inches of clear cover and eight inches minimum embedment. A Simpson RCKW 5.5 base support connector with an RCKW 5.5S stiffener attaches using screw pattern number four at thirty-two inches on center with ten number twelve sheet metal screws.
1'-0" 4'-0" MAX MIN 6"X16 GAX1-5/8" FLANGE @ 32" O.C. AT BASE SUPPORT BOTTOM TRACK CONT 16 GA (50 KSI) TOP TRACK CLR 3" EMBRD 8" MIN SIMPSON RCKW 5.5 CONNECTOR W/ RCKW 5.5S (STIFFENER) SCREW PATTERN No. 4 @ 32" O.C. W/ (10) #12 SMS C L SLAB ON GRADE REINF PER PLAN C L A A A - A MIN 6"X 18 GA @ 16"O.C. INFILL STUDS ELSEWHERE CONT 16 GA (50 KSI) TOP TRACK MIN 6"X16 GAX1-5/8" FLANGE @ 32" O.C. AT BASE SUPPORT MIN 6"X 18 GA @ 16"O.C. INFILL STUDS ELSEWHERE RCKW5.5 BASE SUPPORT CONNECTOR W/ STIFFENER @ 32"O.C. TYP
